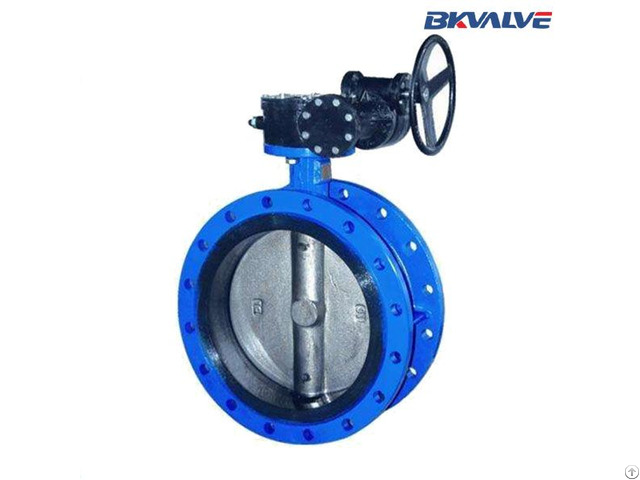

Worm Gear Operated Flange Butterfly Valve - China

worm gear operated flange butterfly valve Features 24 months guarantee Zero Leakage Bi-Directional Low Torque, long life cycle 360°polished disc assures positive on-off Epoxy coated body, smooth surface Various kinds of materials, applicable to different medium Adoptive Standards Valve Design: API 609, MSS SP-67 Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1 Pressure Test: API 598 Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16 Top Flange: ISO5211 Product Advantage 1, The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline 2, The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve 3, Triangle support material, guarantee the required mechanical properties 4, According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation 5, No groove at the bottom to make sure no slag and full bore flow 6, BKVALVE strict implementation of the API598 experimental standard, for each product to implement 100% positive and negative double pressure test, guarantee delivery to customers is 100% qualified products 7, BKVALVE Group dedicated to the dedication of the valve for 15 years, with professional production, sales, research and after-sales team, we are your strong backing.

Standard Test Seat Test: 1.1 times the working pressure with water.

Body Test: 1.5 times the working pressure with water.

This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close).

This test carried out without pressure and at ambient temperature.

It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Company Contact:

• Posted By: Micheal Huang

• Phone: +86 18571470588

• Address: Industry zone, West Ditou Town, Beichen District, Tianjin ,China 300408, Tianjin , China

• Email:

• Website: https://www.bkvalve.com

• Business Description: BKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves.

  In the field of valves, company has a rich design and production experience.

  All products pass through special processing equipment and meets international standards of reliability and safety.

  The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry.

  One priority advantage of the company bkvalve is the extension of the partnership not only with China, but also with foreign countries.

  Our products have reasonable prices, while providing our customers with the highest quality products.

  The company has the possibility of fast delivery of goods.

  We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
