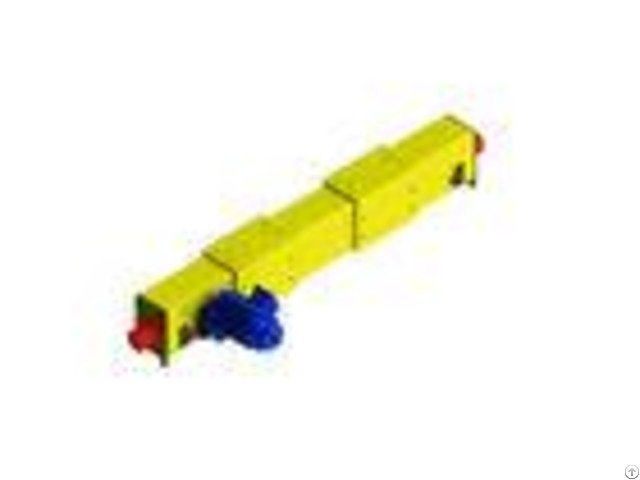

Customised End Carriage Overhead Crane Double Girder Top Running - China
price: check with company for price
Customised European Style Double Girder Top Running End Carriage For Overhead Crane MAIN FEATURES: Double beam crane end beam applysrectangular tube moduler manufacturing, buffer motor drive, with forged wheels, using CNC boring and milling of various customized machine.
Itcompletesthe trepanning, hole boring, milling anddrilling all at once.
You only need to correct welding crane girder and the end beam.
Ultra high cost performance make it very easy foryour crane manufacturing, installation and maintanence.
SPECIFICATION: - - - - Model | Crane | Rectangular Steel tube | Wheel size | Motor power (20m/min) | Motor power (30m/min) | S1 (mm) | S2 (mm) | S3 (mm) | W1 (mm) | W2 (mm) | EUD90-20 | 1.6t-11.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW | 2000 | 1800 | 1000-1200 | 400 | 550 | EUD90-25 | 1.6t-16.5m | 2500 | 2300 | 1000-1200 | 400 | 550 | EUD125-25 | 3.2t-11.5m | 150*200*8 | U125*60 | FA37-0.55KW | FA37-0.75KW | 2500 | 2300 | 1200-1400 | 400 | 550 | EUD125-30 | 3.2t-16.5m | 3000 | 2800 | 1200-1400 | 400 | 550 | EUD125-35 | 3.2t-22.5m | 3500 | 3300 | 1200-1400 | 500 | 650 | EUD125-40 | 3.2t-28.5m | 4000 | 3800 | 1200-1400 | 500 | 650 | EUD160-25 | 6.3t-11.5m | 150*250*8 | U160*70 | FA47-0.75KW | FA47-1.1KW | 2500 | 2200 | 1200-1400 | 400 | 550 | EUD160-30 | 6.3t-16.5m | 3000 | 2700 | 1200-1400 | 400 | 550 | EUD160-35 | 6.3t-22.5m | 3500 | 3200 | 1200-1400 | 500 | 650 | EUD160-40 | 6.3t-28.5m | 4000 | 3700 | 1200-1400 | 600 | 750 | EUD200-25 | 12.5t-11.5m | 200*250*8 | U200*70 | FA57-1.1KW | FA57-1.5KW | 2500 | 2200 | 1400-1600 | 500 | 650 | EUD200-30 | 12.5t-16.5m | 3000 | 2700 | 1400-1600 | 500 | 650 | EUD200-35 | 12.5t-22.5m | 3500 | 3200 | 1400-1600 | 600 | 750 | EUD200-40 | 12.5t-28.5m | 4000 | 3700 | 1400-1600 | 600 | 750 | EUD250-35A | 16t-16.5m | 200*300*8 | U250*80 | FA67-1.5KW | FA67-2.2KW | 3500 | 3100 | 1600-1800 | 500 | 650 | EUD250-40A | 16t-22.5m | 4000 | 3600 | 1600-1800 | 600 | 750 | EUD250-45A | 16t-28.5m | 4500 | 4100 | 1600-1800 | 700 | 850 | EUD250-35B | 20t-16.5m | 200*400*8 | U250*80 | FA77-2.2KW | FA77-3KW | 3500 | 3100 | 1800-2000 | 600 | 750 | EUD250-40B | 20t-22.5m | 4000 | 3600 | 1800-2000 | 600 | 750 | EUD250-45B | 20t-28.5m | 4500 | 4100 | 1800-2000 | 700 | 850 | EUD315-35 | 32t-16.5m | 200*400*10 | U315*90 | FA87-4KW | FA87-5.5KW | 3500 | 3000 | 1800-2000 | 700 | 850 | EUD315-40 | 32t-22.5m | 4000 | 3500 | 1800-2000 | 700 | 850 | EUD315-45 | 32t-28.5m | 4500 | 4000 | 1800-2000 | 700 | 850 | - - - - Application: JCYC-EUDEuropean Style Double Girder Top Running End Carriage Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
FACTORY SHOW: PLEASE FEEL FREE TO CONTACT US WITH ANY INQUIRY.
Company Contact:
- Posted By: Chongqing Shanyan Crane Machinery Co., Ltd.
- Phone: 86-23-68882138
- Address: 12-3, No.6, Keyuan 1st Road, Jiulongpo District, Chongqing, China, Chongqing , Chongqing , China
- Email:
- Website: https://www.electric-hoistcrane.com
Published date: March 16, 2018
- Business Description: Chongqing ShanYan Crane Machinery CO., LTD was established in 1991 as a privately owned Chinese company and has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.
