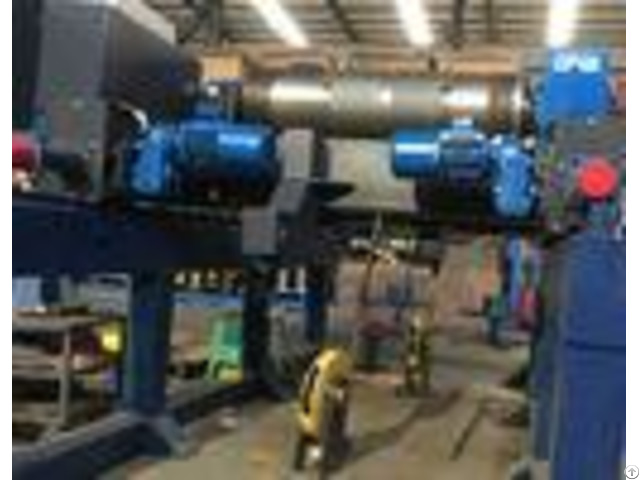

Double Rail Electric Crane Hoistwith Steel Material And Customized Color - China

price: check with company for price

Double Rail Electric Crane Hoistwith Steel Material And Customized Color

Products Photos Catalog Double Rail Electric Photos Catalog

Sysha double-rail electric wire rope hoists sysha model, double-rail winch hoist, electric wire rope hoist widely applied in petro industry, chemical industry, coal industry, textile industry, etc.

product details: sysha double-rail electric wire rope hoist, winch hoist features and advantages: 1 - the main parts of it adopt high quality material to ensure durability.

2 - special specifications and marks can be made according to customers' requirements.

3 - excellent approach dimensions thanks to compact design.

4 - makes optimum use of headroom.

5 - particularly favorable hook paths.

6 - anti derailment and lift-off protection design.

- - - - type | capacity (t) | classification | lifting height (m) | lifting speed (m/min) | lifting motor (kw) | rope reeving | roll dia.

(mm) | rope dia.

(mm) | travelling speed (m/min) | travelling motor (kw) | wheel dia.

(mm) | sha7bs | 25 | m5 | 6 | 3.4 | 18 | 4 | 450 | 18 | 30 | 2*1.1 | 350 | 32 | m4 | 10 | 2.7 | 25 | 40 | m3 | 20 | 2.2 | 20 | sha8bs | 25 | m5 | 10 | 5.8 | 37 | 2 | 600 | 28 | 30 | 2*1.1 | 350 | 32 | m4 | 20 | 5.2 | 25 | 30 | 40 | m3 | 40 | 4.1 | 20 | 50 | m5 | 6 | 2.9 | 4 | 25 | 2*1.5 | 500 | 63 | m4 | 10 | 2.6 | 20 | 15 | 80 | m3 | 20 | 2.1 | 15 | - - - -


Company Contact:


  • Phone: 86-23-68882138

  • Address: 12-3, No.6, Keyuan 1st Road, Jiulongpo District, Chongqing, China, Chongqing , Chongqing , China

  • Email: Email


Published date: March 16, 2018

  • Business Description: Chongqing ShanYan Crane Machinery CO., LTD was established in 1991 as a privately owned Chinese company and has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.
