Electric Wire Rope Double Girder Hoist For Lifting Goods To 50t - China

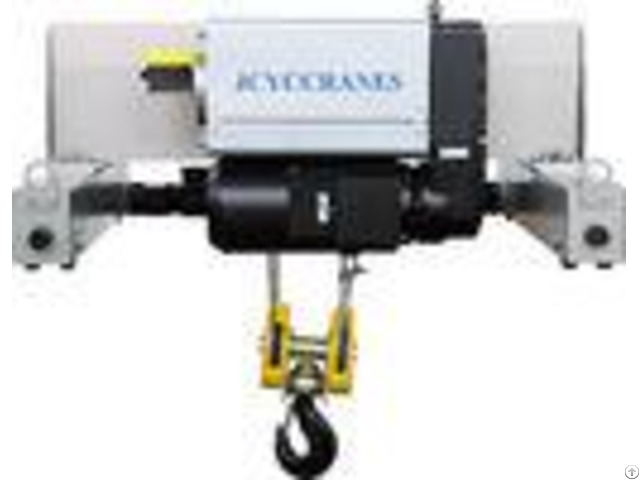

Shsl-b double girder electric wire rope hoist

shsl-b model, double girder electric wire rope hoist

widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

product details:

shsl-b double girder electric wire rope hoist features and advantages:

1 - high performance hoist delivers exceptional reliability in even the most demanding applications.

2 - protect loads and production machinery from unnecessary contact and damage.

3 - specified by the military because all critical welds are magnetic particle inspected.

4 - top-quality components and design features provide operator peace-of-mind.

5 - with newest designing like quadrate outline, modularized construction and good unitized capacity.

- - - -

capacity

(t) | lifting height

(m) | lifting speed

(m/min) | lifting motor

(kw) | travelling speed

(m/min) | travellingmotor

(kw) | liftingsystem

(fem/iso) | travellingsystem

(fem/iso) | trolley railgauge

(mm) | 3.2 | 6/9/12/15/18 | 5/0.8 | 3.2/0.42 | 5/20 | 0.25*2 | 2m | m5 | 2m | m5 | 1000-1700 | 5 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37*2 | 2m | m5 | 2m | m5 | 1000-1700 | 6.3 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37*2 | 2m | m5 | 2m | m5 | 1000-1700 | 8 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.37*2 | 2m | m5 | 2m | m5 | 1000-2000 | 10 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.37*2 | 2m | m5 | 2m | m5 | 1000-2000 | 12.5 | 6/9/12/15/18 | 5/0.8 | 12.5/2 | 5/20 | 0.55*2 | 1am | m4 | 2m | m5 | 1000-2000 | 16 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.55*2 | 2m | m5 | 2m | m5 | 1400-2400 | 20 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.55*2 | 1am | m4 | 2m | m5 | 1400-2400 | 25 | 6/9/12/15/18 | 3.3/0.8 | 20/5 | 5/20 | 0.75*2 | 3m | m6 | 2m | m5 | 1700-3100 | 32 | 6/9/12/15/18 | 3.3/0.8 | 20/5 | 5/20 | 1.1*2 | 2m | m5 | 2m | m5 | 1700-3100 | 40 | 6/9/12/15/18 | 0-4 | 38 | 5/20 | 1.5*2 | 1am | m4 | 2m | m5 | 1700-3100 | 50 | 6/9/12/15/18 | 0-3 | 38 | 5/20 | 1.5*2 | 2m | m5 | 2m | m5 | 1700-3100 | 50 | 6/9/12/15/18 | 0-3 | 38 | 5/20 | 1.5*2 | 2m | m5 | 2m | m5 | 2000-4200 | - - - -
