Gl General Single Girder Top Running End Carriage 50t 20t Loading Capacity - China

50t 20t 10t 6t 2t Loading capacity GL General Single Girder Top Running End Carriage Application:

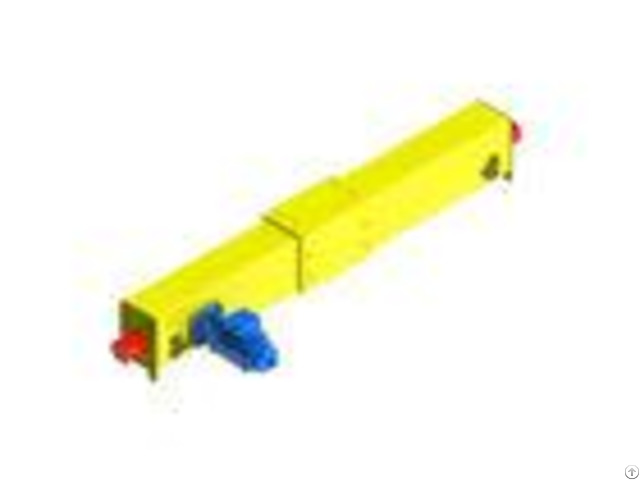

GL Model, General Single Girder Top Running End Carriage

Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Features and Advantages: 1 - Using electromagnetic brake motors buffer, conjoined wheels, rectangular pipe and other major configuration.

2 - Light weight, beautiful outlook, low noise with high transmission efficiency.

3 - Modular production such as multiple features, it improved quality and competity without increase cost.

4 - Compact built-in stopper also adaptive to photoelectric and greatly improved aesthetics.

5 - Forged wheels, geared motor, head board, buffer and other parts all use high quality materials to ensure safety and durability.

Product Details:

GL General Single Girder Top Running End Carriage - - - -

Model | Crane | Rectangular

Steel tube | Wheel Size | Motor power | S1

(mm) | S2

(mm) | W1

(mm) | W2

(mm) | GL125-15 | 1t-7.5m | 150*150*6 | W125*60 | 0.3KW*2 | 1500 | 1300 | 400 | 500 | GL125-20 | 1t-11.5m | 2000 | 1800 | 400 | 500 | GL125-25 | 1t-16.5m | 2500 | 2300 | 400 | 500 | GL160-15 | 2t/3t-7.5m | 150*200*8 | W160*70 | 0.4KW*2 | 1500 | 1200 | 400 | 500 | GL160-20 | 2t/3t-11.5m | 2000 | 1700 | 400 | 500 | GL160-25 | 2t/3t-16.5m | 2500 | 2200 | 400 | 500 | GL160-30 | 2t/3t-22.5m | 3000 | 2700 | 500 | 600 | GL160-35 | 2t/3t-28.5m | 3500 | 3200 | 600 | 700 | GL200-20 | 5t-11.5m | 150*250*8 | W200*70 | 0.4KW*2 | 2000 | 1700 | 400 | 500 | GL200-25 | 5t-16.5m | 2500 | 2200 | 400 | 500 | GL200-30 | 5t-22.5m | 0.75KW*2 | 3000 | 2700 | 500 | 600 | GL200-35 | 5t-28.5m | 3500 | 3200 | 600 | 700 | GL250-20 | 10t-11.5m | 200*250*8 | W250*80 | 0.75KW*2 | 2000 | 1600 | 400 | 500 | GL250-25A | 10t-16.5m | 2500 | 2100 | 500 | 600 | GL250-30A | 10t-22.5m | 1.1KW*2 | 3000 | 2600 | 500 | 600 | GL250-35A | 10t-28.5m | 3500 | 3100 | 700 | 800 | GL250-25B | 16t-16.5m | 200*300*8 | W250*80 | 1.1KW*2 | 2500 | 2100 | 600 | 700 | GL250-30B | 16t-22.5m | 3000 | 2600 | 700 | 800 | GL250-35B | 16t-28.5m | 1.5KW*2 | 3500 | 3100 | 700 | 800 | GL315-30 | 20t-16.5m | 200*400*8 | W315*90 | 1.5KW*2 | 3000 | 2500 | 700 | 800 | GL315-35 | 20t-22.5m | 3500 | 3000 | 700 | 800 | - - - - Brief Introduction ofBrand: JCYC is one of the leading manufacturers and suppliers in China, offering wholesale service to the world since 1991 - International standard production, strong technology team, excellent sales and after-sales service, JCYC is the best partner on your successful business road.

OEM & ODM are both ok.

Welcomes contact us to gain mutual benefits and make bright future together.
