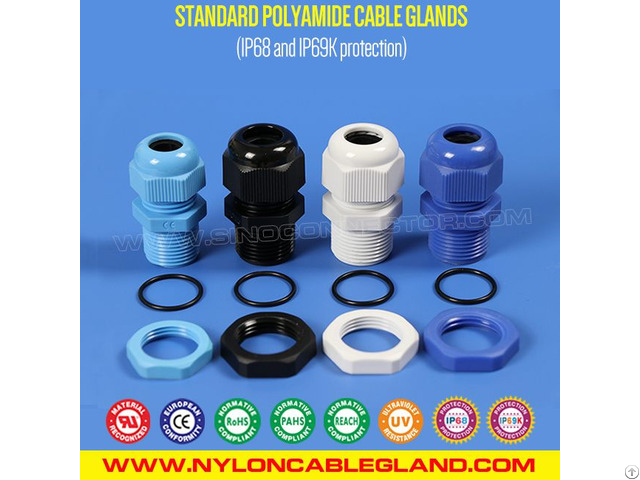

Ip68 Ip69k Waterproof Polyamide Nylon Plastic Cabel Glands - China

(1) Product Name:

High Quality IP68 Plastic Cable Gland Eco-Friendly IP69K Polyamide Nylon Cable Gland Cord Grips (Industrial Sealing Cable Gland).

(2) Raw Material:

* Sealing Nut, Locknut & Body: 100% new PA 66, 94V-2 approved by UL(contact us for 94V-0).

* Hermetic Seal & O-ring: NBR, EPDM, Natural Rubber, Viton Rubber, Silicon Rubber.

(3) Standard Colors:

Light-grey RAL7035, black RAL9005 (other colors can be customized: blue, green, yellow, red, dark-grey, milk, etc).

(4) Protection Degree:

IP68 (used with the O-ring within its specific cable range).

(5) Operating Temperature Range:

Ambient temperature: Quiescent state: -40 ℃ to 100 ℃, short time to: 120 ℃.

Dynamic: -20 ℃ to 80 ℃, short time to: 100 ℃.

(6) Certificates: CE, ROHS, PAHS, REACH, UV, SGS, IP68, IP69K, (7) Main Features:

Waterproof, acid & oil resistant, UV resistant, anti-aging, durable, good performance, long-life.

(8) Installation:

With special design and good tensile strength, cables can be directly inserted into the hole of the same size thread and then fix it with the Locknut.

(9) Application Areas:

High Quality IP68 Plastic Cable Gland Eco-Friendly IP69K Polyamide Nylon Cable Gland Cord Grips (Industrial Sealing Cable Gland) is widely used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments.

Innovative design for the Seal and Clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.

(10) Specifications available:

* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48, PG63.

* M12x1.5, M14x1.5, M16x1.5, M20x1.5, M22x1.5, M25x1.5, M27x1.5, M32x1.5, M40x1.5, M50x1.5, M63x1.5.

* NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2".

* BSC3/8", BSC1/2", BSC3/4", BSC1", BSC1-1/4", BSC1-1/2", BSC2".
