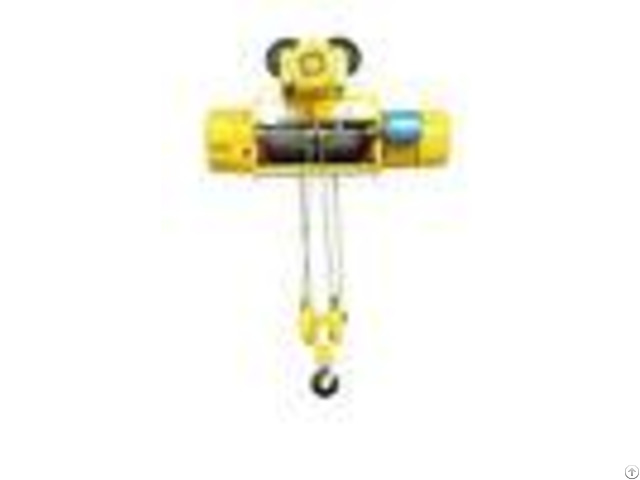

Lifting Goods Electric Wire Rope Hoist Leading Crane Large Tonnage With Trolley - China

Hc-a hc-b electric wire rope hoist hc-a & hc-b model, electric wire rope hoist it is a lifting equipment which designed on the basis of cd1/md1 - widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

product details: hc-a hc-b electric wire rope hoist features and advantages: 1 - color variety.

2 - different power supply is available.

3 - high quality material includes q235b schneider control box, 20 chromium manganese titanium gear and 40 chromium forge hook, etc.

4 - transmission shaft: 45#quenched and tempered steel; with thicken steel plate cover and coiling block.

5 - high quality and wide adaptation.

6 - excellent performance.

7 - 1 year warranty 8 - sample, oem or odm is ok.

- - - - model | lifting capacity(t) | lifting height(m) | lifting speed(m/min) | running speed(m/min) | wire rope type | dia.

of wire rope | i beam track type | working duty | lifting motor | running motor | power(kw) | r.p.m(r/min) | power supply | power(kw) | r.p.m(r/min) | power supply | hc-a0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | m3 | 0.4 | 1380 | 220-440v 50/60hz, 3 phase | 0.06 | 1400 | 220-440v 50/60hz, 3 phase | hc-a0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | m3 | 0.8 | 1380 | 0.2 | 1380 | hc-a1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | m3 | 1.5 | 1380 | 0.2 | 1380 | hc-a2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | m3 | 3 | 1380 | 0.4 | 1380 | hc-a3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | m3 | 4.5 | 1380 | 0.4 | 1380 | hc-a5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | m3 | 7.5 | 1380 | 0.8 | 1380 | hc-a10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | m3 | 13 | 1400 | 0.8*2 | 1380 | hc-a16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | m2 | 13 | 1400 | 0.8*2 | 1380 | hc-a20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | m2 | 13 | 1400 | 0.8*2 | 1380 | | | | | | | | | | | | | | | | model | lifting capacity(t) | lifting height(m) | lifting speed(m/min) | running speed(m/min) | wire rope type | dia.

of wire rope | i beam track type | working duty | lifting motor | running motor | power(kw) | r.p.m(r/min) | power supply | power(kw) | r.p.m(r/min) | power supply | hc-b16 | 16 | 9-48 | 3.5(3.5/0.35) | 20 | 6*19 | 17.5 | 50a-63c | m3 | 13(13/1.5) | 920(1400) | 220-440v 50/60hz, 3 phase | 0.8*2 | 1380 | 220-440v 50/60hz, 3 phase | hc-b20 | 20 | 9-24 | 3.5/0.3(4/0.4) | 20 | 6*37+1 | 20 | 50a-63c | m6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | hc-b25 | 25 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 20 | 50a-63c | m6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | hc-b32 | 32 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 26 | 50a-63c | m3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | hc-b50 | 50 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | m3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | hc-b80 | 80 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | m3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | - - - -

Company Contact:

• Posted By: Chongqing Shanyan Crane Machinery Co., Ltd.

• Phone: 86-23-68882138

• Address: 12-3, No.6, Keyuan 1st Road, Jiulongpo District, Chongqing, China, Chongqing , Chongqing , China

• Email:

• Website: https://www.electric-hoistcrane.com

• Business Description: Chongqing ShanYan Crane Machinery CO., LTD was established in 1991 as a privately owned Chinese company and has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.
