    • Light Weight Crane Spare Parts Sliding Contact Line Conductor Bar Systems - China

    price: check with company for price

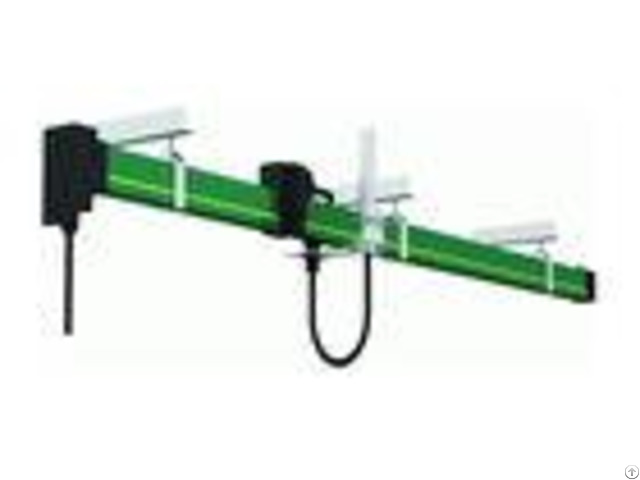

    Light Weight Crane Spare Parts Sliding Contact Line Conductor Bar Systems

    Products Photos Catalog Light Crane Spare Photos Catalog

    Light Weight Good Conductivity Sliding Contact Line Conductor Bar Systems Specifications: - - - - Electrical parameters: | Max.

    Current | 240A | Max.

    Voltage | 660V | Dielectric strength | 30-40KV/mm | Spec.

    resistance | 51015 Ohmcm | Surface resistivity | 1013 Ohmcm | Leakage resistance | CTI600-2.7 | Mechanical parameters: | Flexible strength | 75N/mm210% | Tensile strength | 40N/mm2 10% | Temperature range: | Standard Housing | -20C +70C | High Temp.

    Housing | -10C +115C | Low Temp.

    Housing | -40C +80C | Combustibility: | Flame retardant | Class B1 - no flaming particles, self-extinguishing | Resistance to chemicals: | +45C | Gasoline | Sulphuric acid 50% | Mineral oil | Caustic soda 25% & 50% | Grease | Hydro-chloric acid, concentrated | - - - - Product Description: - - - - Model | Poles | Conductor cross section (mm) | Max.

    Current (A) | Leakage-distance (mm) | Max.

    Voltage (V) | Resistance (/km) | Weight (kg) | HFP56-4-8/35 | 4 | 8 | 35 | 35 | 660 | 1.944 | 2.09 | HFP56-4-10/50 | 4 | 10 | 50 | 35 | 660 | 1.656 | 2.16 | HFP56-4-12/65 | 4 | 12 | 65 | 35 | 660 | 1.321 | 2.23 | HFP56-4-15/80 | 4 | 15 | 80 | 35 | 660 | 1.137 | 2.30 | HFP56-4-20/100 | 4 | 20 | 100 | 33 | 660 | 1.011 | 2.43 | HFP56-4-25/120 | 4 | 25 | 120 | 33 | 660 | 0.713 | 2.56 | HFP56-4-35/140 | 4 | 35 | 140 | 33 | 660 | 0.522 | 2.95 | HFP56-4-50/170 | 4 | 50 | 170 | 33 | 660 | 0.337 | 3.25 | HFP56-4-70/210 | 4 | 70 | 210 | 33 | 660 | 0.265 | 3.85 | HFP56-4-80/240 | 4 | 80 | 240 | 30 | 660 | 0.233 | 4.16 | - - - -


    Company Contact:


    • Phone: 86-23-68882138

    • Address: 12-3, No.6, Keyuan 1st Road, Jiulongpo District, Chongqing, China, Chongqing , Chongqing , China

    • Email: Email


    Published date: March 16, 2018

    • Business Description: Chongqing ShanYan Crane Machinery CO., LTD was established in 1991 as a privately owned Chinese company and has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.
