Low Headroom Electric Chain Hoist Customized Request For Lifting Goods - China

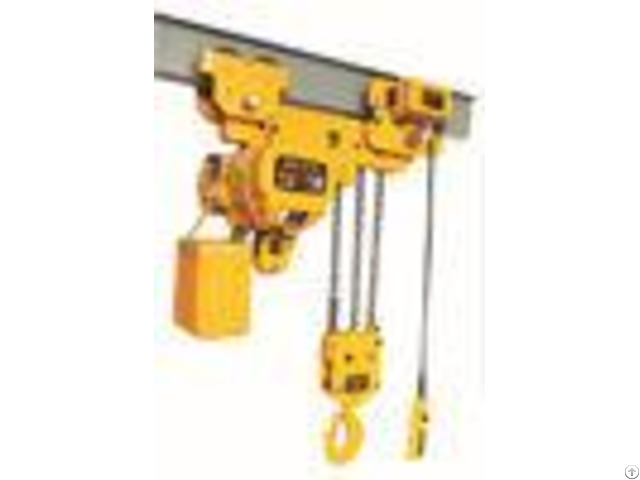

Sy-l low headroom electric chain hoist sy-l model, low headroom electric chain hoist low-headroom design, enclosed in-line gear train with oil bath lubrication, mechanical load brake and electric motor brake widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

product details: sy-l low headroom electric chain hoist features and advantages: 1 - high performance hoist delivers exceptional reliability in even the most demanding applications.

2 - maximize overhead clearance and minimizes beam-to-hook distance.

3 - protect loads and production machinery from unnecessary contact and damage.

4 - specified by the military because all critical welds are magnetic particle inspected.

5 - top-quality components and design features provide operator peace-of-mind.

- - - - model | lifting capacity (t) | lifting speed (m/min | running speed(m/min) | lifting motor | running motor | i-beam (mm) | single chain | double chains | single chain | double chains | power (kw) | r.p.m (r/min) | power supply | power (kw) | r.p.m (r/min) | power supply | single chain | double chains | sy-l0.5 | 0.5 | 7.8 | / | 12.2 | / | 0.75 | 1440 | 220-440v 50/60hz 3phase | 0.12 | 1440 | 220-440v 50/60hz 3phase | 58-130 | / | sy-l1 | 1 | 6.8 | 3.9 | 10/20 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 100-160 | 110-160 | sy-l2 | 2 | 6.8 | 3.4 | 10/20 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 | 120-160 | sy-l3 | 3 | 5.6 | 3.4 | 10/20 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 110-180 | 120-180 | sy-l5 | 5 | / | 2.8 | / | 10/20 | 3.0 | 1440 | 0.75 | 1440 | / | 120-180 | sy-l7.5 | 7.5 | 1.8(3 chains) | 10/20(3 chains) | 3.0 | 1440 | 0.75 | 1440 | 128-180(3 chains) | sy-l10 | 10 | 2.7(4 chains) | 10/20(4 chains) | 3.0*2 | 1440 | 0.75 | 1440 | 110-180(4 chains) | - - - -
