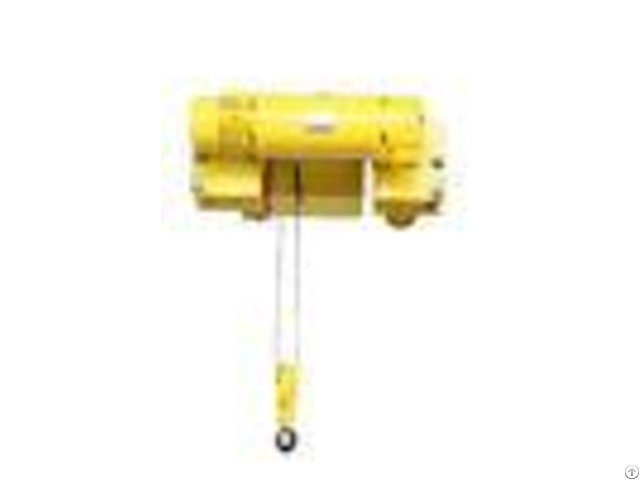

Low Headroom Electric Wire Rope Hoist Leading Crane For Coal Mining Industry - China

Cdl mdl low headroom electric wire rope hoist cdl mdl model low headroom electric wire rope hoist it is a lifting equipment which designed on the basis of cd1/md1 - widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

product details: cdl mdl low headroom electric wire rope hoist features and advantages: 1 - choose single or double lifting speed, even multi-speed with frequency inverters.

2 - the suitable rail for low-headroom hoist is h-type rail, and i-type also is available.

3 - cdl has only a normal speed which can satisfy normal application.

3 - mdl provides two speeds: normal speed and low speed.

it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.

4 - high quality and wide adaptation.

5 - excellent performance and 1 year warranty.

6 - sample order, oem and odm orders are all welcomed.

- - - - model | lifting height(m) | travelling speed(m/min) | wire rope(spec.

) | dia.

of wire rope(mm) | lifting motor | power supply | type | power(kw) | r.p.m(r/min) | current(a) | 0.5 | 8(0.8/8) | 20/30 | 6*37+fc | 4.8 | zd121-4 | 0.8(0.2/0.8) | 1380 | 2.2(0.72/2.4) | ac380v 50hz, 3p | zds10.2/0.8 | 1 | 8(0.8/8) | 20/30 | 6*37+fc | 7.4 | zd122-4 | 1.5(0.2/1.5) | 1380 | 4.3(0.72/4.3) | zds10.2/1.5 | 2 | 8(0.8/8) | 20/30 | 6*37+fc | 11 | zd131-4 | 3(0.4/3) | 1380 | 7.6(1.25/7.6) | zds10.4/3 | 3 | 8(0.8/8) | 20/30 | 6*37+fc | 13 | zd132-4 | 4.5(0.4/4.5) | 1380 | 11(2.4/11) | zds10.4/4.5 | 5 | 8(0.8/8) | 20/30 | 6*37+fc | 15 | zd141-4 | 7.5(0.8/7.5) | 1400 | 18(2.4/18) | zds10.8/7.5 | 10 | 7(0.7/7) | 20/30 | 6*37+fc | 15 | zd151-4 | 13(1.5/13) | 1400 | 30(5.2/30) | zds11.5/13 | 16 | 3.5(0.35/3.5) | 18 | 6*37+fc | 17.5 | zd151-4 | 13(1.5/13) | 1400 | 30(5.2/30) | zds11.5/13 | - - - -
