Motor Insulation Plate Made Of Fr4 - China

price: 5.00 Dollar US$

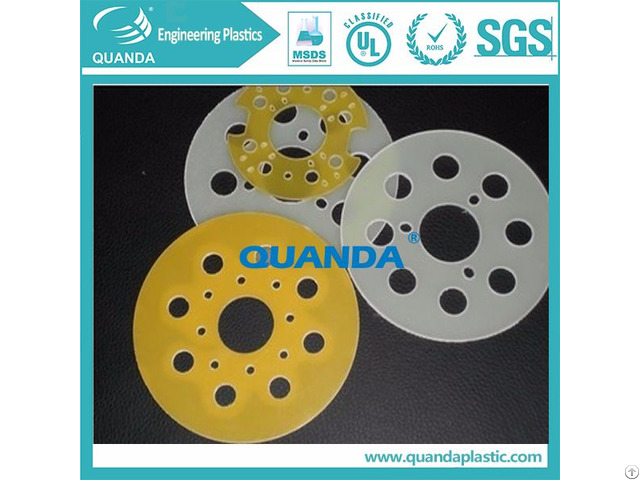

Motor Insulation Plate Made Of Fr4

Products Photos Catalog Motor Insulation Plate Photos Catalog

I.

Material Introduction

Define and purpose

This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy phenolic resin.

It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electri cal equipment, as well as used under damp environmental conditions and transformer oil .

Technical requirement for surface

The surface of laminated board should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress, dirty spot and uneven color, but a little color patches is allowed.

II.

Related products: G10/G11 Epoxy Glass Fiber Sheet Color: Green

G10/G11 is a composite material combined with glass fiber cloth and epoxy resin, which can bear great pressure without damage and deformation.

G10/G11 can’t be permeated by vapor and liquid and it owns good insulation and acid& alkali resistance characteristics.

G10 can be FR4 by adding flame retardant but it becomes G11 by improving thermal flexural properties.

Antistatic Epoxy Fiber Glass Sheet Color: Black

Advantages: high density, low absorption, good heat resistance and dimension stability, good dielectric properties and mechanical strength.

Application: Be used for various testing jigs, flat of precise instrument and installment of electrical products Surface resistivity: after finishing moisture-proof C-96/35/90: 106 ~109Ω

after high temperature E-24/125: 106 ~109Ω

Volume resistivity: after finishing moisture-proof C-96/35/90：4×108 Ω-cm

after high temperature E-24/125: 2×106 Ω-cm


Company Contact:


  • Phone: +8613421367051

  • Address: 13/F,Baolong Building B,Longguan West Rd.,Longhua, District, Shenzhen , Guangdong , China

  • Email: Email


Published date: August 10, 2017

  • Business Description: Quanda Plastic, we are well-known for manuafacturig and providing engieering plasyics, ESD plastics, fluroplastic, thermosetting platics, as well as fabrication service.
