Remote Control Explosion Proof Electric Wire Rope Hoist 0 5 Ton To 16 Tons Yellow Color - China

1 - Product Profile: BCD Model, Explosion-proof Electric Wire Rope Hoist.

Completely solved sparkers problem and widely used in industries.

Its working system is M3 - M4, has120 numbers of connecting times.

Standard power source is Three phase AC 380 V 50 Hz, customization is ok.

2 - Description: 2.1 - Insulation Grade: F.

Usage: Lifting, fixing, binding, traction, etc.

2.2 - High quality and wide adaptation.

2.3 - Excellent performance.

2.4.1 year warranty 2.5 - Sample, OEM and ODM are all ok.

3 - Advantages: 3.1 - The main parts of it adopt high quality steel product to ensure durability.

3.2 - Special specifications and marks can be made according to customers' requirements.

3.3 - Adapts to environment that has explosive gas formed by inflammable gas, steam and sir of which explosion proof grade is less than B or C grade and ignition grade is more than T4 (135) group.

3.4 - The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

4 - Parameter: - - - - Model | Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Travelling Speed(m/min) | Wire Rope Spec.

| Dia.

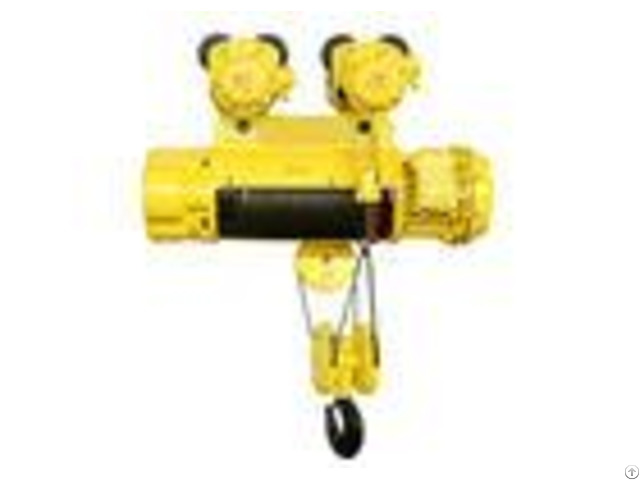

Of Wire Rope(mm) | Lifting Motor | Power Supply | Type | Power(kw) | R.P.M(r/min) | Current(A) | BCD0.5 | 0.5 | 6-12 | 8(0.8/8) | 20/30 | 6*37 | 4.8 | BZD121-4 | 0.8(0.2/0.8) | 1380 | 2.4(0.72/2.4) | AC380V 50HZ, 3 P | BZDS10.2/0.8 | BCD1 | 1 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 7.4 | BZD122-4 | 1.5(0.2/1.5) | 1380 | 4.3(0.72/4.3) | BZDS10.2/1.5 | BCD2 | 2 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 11 | BZD131-4 | 3(0.4/3) | 1380 | 7.6(1.25/7) | BZDS10.4/3 | BCD3 | 3 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 13 | BZD132-4 | 4.5(0.4/4.5) | 1380 | 11(2.25/11) | BZDS10.4/4.5 | BCD5 | 5 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 15 | BZD141-4 | 7.5(0.8/7.5) | 1400 | 18(2.4/18) | BZDS10.8/7.5 | BCD10 | 10 | 9-30 | 7(0.7/7) | 20/30 | 6*37 | 15 | BZD151-4 | 13(1.5/13) | 1400 | 30(5.2/30) | BZDS11.5/13 | BCD16 | 16 | 9-30 | 3.5(0.35/3.5) | 18 | 6*37 | 17.5 | BZD151-4 | 13(1.5/13) | 1400 | 30(5.2/30) | - - - - 5 - Photo: 6 - Company Message: OEM & ODM are both ok.

Welcomes contact us to gain mutual benefits and make bright future together.
