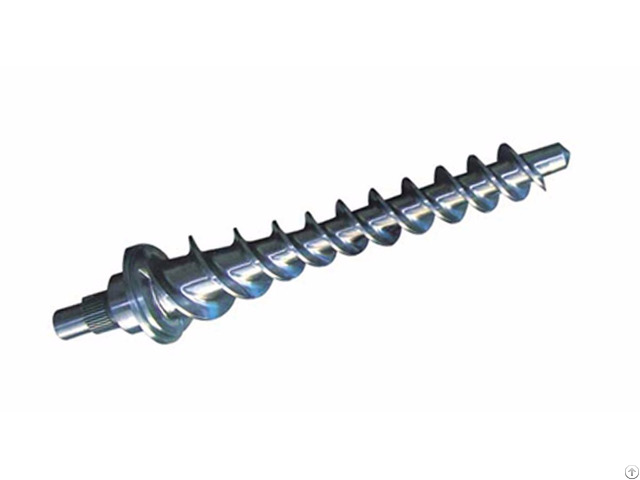

Screw Of Rubber Machine - China

1) High temperature, high temperature deformation;

2) Wear resistance, long life;

3) Resistant to corrosion, corrosive materials;

4) High intensity, which can withstand high torque, high speed;

5) Has a good machinability;

6) The residual stress after heat treatment, thermal deformation and so on.

Product Specification and technical data

inner Diameter：Ø45-Ø300

L/D=8～20

Hardness of quenching and tempering：HB240°～280 °

Hardness of nitration：HV850°～100 0°

Depth of Nitrated Layer：0.45～0.7mm

Fragility of nitration：≤ Grade 2

Surface roughness：Ra0.4

straightness：0.015mm

Hardness of Cr-coating Layer：HV≥900HV

Nitrided layer thickness：0.05～0.10mm

Thickness of Cr-coated Layer：0.8～2.0mm

Hardness of bimetallic：HRC56°～65 °(Ni-based alloy)



Material : quality alloy steel

① 38CrMoALA(JIS SACM645)

② 42CMo(JIS SCM440)

③ 9Cr18MoV

④ CW6Mo5Cr4V2

Heat-treatment：

Nitriding treatment

Electroplated hard-chrome finish

High-frequency quenching

Spray coating Bimetallic-alloy

vacuum quenching
