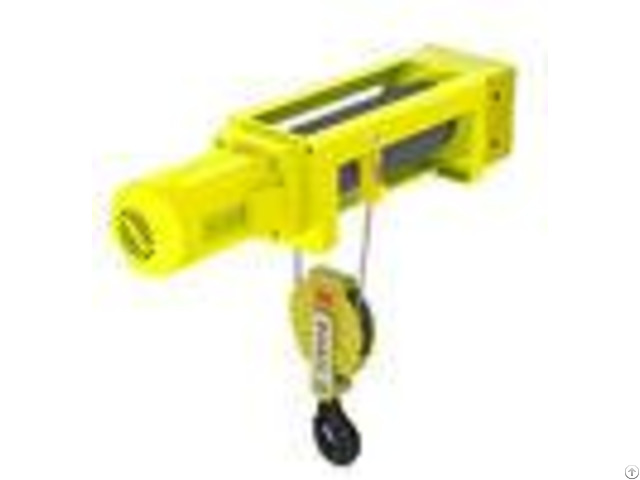

Yellow Color Mini Electric Wire Hoist 2 1 Rope Reeving Leading Crane For Lifting Goods - China

Sysh series foot-mounted electric wire rope hoist (2/1 rope reeving) shs-b 2/1 model, foot-mounted electric hoist (2/1 rope reeving) widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

product details: shs-b 2/1 foot-mounted electric wire rope hoist (2/1 rope reeving) features and advantages: 1 - particularly favorable hook paths.

2 - anti derailment and lift-off protection design.

3 - makes optimum use of headroom.

4 - excellent approach dimensions thanks to compact design.

5 - the main parts of it adopt high quality material to ensure durability.

6 - special specifications and marks can be made according to customers' requirements.

- - - - type | capacity (t) | classification | rope reeving | lifting speed (m/min) | lifting motor (kw) | l2 (mm) | (mm) | a (mm) | a0 (mm) | b (mm) | hmin (mm) | l3 (mm) | s (mm) | lifting height (m) | size | single speed | double speed | 9 | 12 | 18 | 24 | 30 | shs-b 2/1 3 | 1 | m4 | 2/1 | 8.4(8.4/2.1) | 1.5(1.5/0.4) | 300 | 500 | 13 | 278 | 215 | 253 | 455 | 163 | 0.0161h | 431 | 528 | 722 | 916 | 1110 | l0 | 681 | 778 | 972 | 1166 | 1360 | l1 | 113 | 113 | 113 | 113 | 113 | d | shs-b 2/1 4 | 2 | m4 | 2/1 | 7.2(7.2/2.4) | 3(3/1) | 350 | 535 | 18 | 335 | 265 | 310 | 578 | 181 | 0.0174h | 494 | 648 | 856 | 1064 | 1272 | l0 | 771 | 925 | 1133 | 1341 | 1549 | l1 | 148 | 198 | 198 | 198 | 198 | d | shs-b 2/1 5 | 3.2 | m4 | 2/1 | 7(7/1.6) | 4.5(4.5/1.1) | 380 | 600 | 18 | 370 | 300 | 346 | 649 | 198 | 0.0182h | 524 | 683 | 901 | 1119 | 1337 | l0 | 827 | 986 | 1204 | 1422 | 1640 | l1 | 161 | 211 | 211 | 211 | 211 | d | shs-b 2/1 6 | 5 | m4 | 2/1 | 7.6(7.6/1.8) | 7.5(7.5/2) | 460 | 645 | 26 | 408 | 325 | 381 | 739 | 226 | 0.0191h | 574 | 768 | 997 | 1226 | 1455 | l0 | 907 | 1101 | 1330 | 1559 | 1788 | l1 | 178 | 258 | 258 | 258 | 258 | d | shs-b 2/1 7 | 8 | m4 | 2/1 | 8(8/2) | 13(13/3.4) | 520 | 620 | 26 | 480 | 370 | 455 | 799 | 249 | 0.0194h | 612 | 808 | 1041 | 1274 | 1507 | l0 | 1005 | 1201 | 1434 | 1667 | 1900 | l1 | 204 | 284 | 284 | 284 | 284 | d | shs-b 2/1 8 | 10 | m4 | 2/1 | 6.4(6.4/1.6) | 13(13/3.4) | 520 | 620 | 26 | 480 | 370 | 455 | 799 | 249 | 0.0194h | 612 | 808 | 1041 | 1274 | 1507 | l0 | 1005 | 1201 | 1434 | 1667 | 1900 | l1 | 204 | 284 | 284 | 284 | 284 | d | - - - - jcyc is one of the leading manufacturers and suppliers in china, offering wholesale service to the world since 1991 - international standard production, strong technology team, excellent sales and after-sales service, jcyc is the best partner on your successful business road.

oem & odm are both ok.

welcomes contact us to gain mutual benefits and make bright future together.
