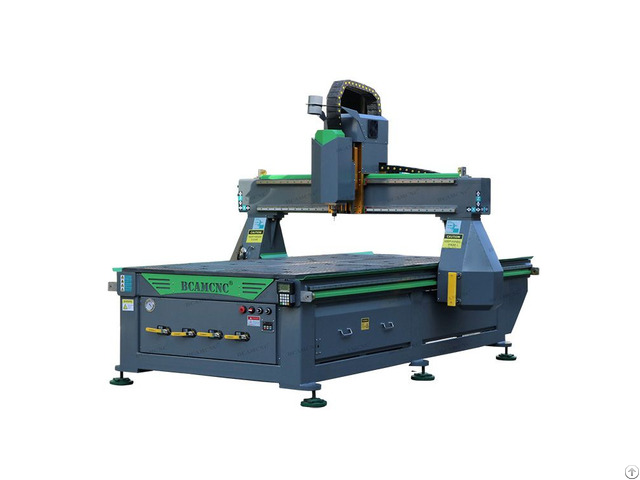

Bcam Wood Cutting Cnc Router Machine For Woodworking Cabinet Furniture Mdf Aluminum Acrylic - China

Product Description Configuration Working area: 1300*2500*200mm|4′*8′

CE standard

3.0kw water cooling spindle(Option: 5.5kw, 6.0kw, 7.5kw Quick-Release Spindle) 8mm Heavy duty frame Active safety system X, Y axis gear transmission, Z axis Taiwan TBI ball screw transmission Taiwan Hiwin 25 rails Vacuum table+T-solt Schneider Electronic spare parts Automatic lubrication system Rich auto A11 control system Japan Omron limit switch High torque stepper motor and drivers Delta Inverter 3.7kw 3.0kw double dust collector +Dust collector pipe+Dust collector support Tool height sensor Industrial water Chiller CW3000 Standard box of tools Optional Vacuum pump Oil free pump 5.5Kw

Air pump 5.5Kw

CAM Software VCarve/VCarve Pro/ArtCAM/UcanCAM, etc.

Feature 1 - The frames is welded by thick-walled rectangular steel and tempered at high temperature

2 - No deformation, high rigidity, with over 3 tons of load-bearing frame

3 - Taiwan imported rails and sliders, HIWIN, high precision, low noise, durable.

4 - Transmission parts are imported rack with high precision and speed.

5 - The machine cable and Electrical adopts international famous brand, which makes the machine works in steady and high efficient condition.

6 - Unique domestic water circulation system, energy saving and environment protection.

7 - Newest design of triaxial enclosed totally, dustproof, waterproof.

Technical Parameter Working size 1300*2500mm X, Y, Z transmission X, Y axis gear transmission, Z axis Taiwan TBI screw transmission Guide rail Taiwan Hinwin 25 liner guide rail Spindle water cooling spindle Spindle power 5.5kw Inverter Fuling inverter Spindle rotating speed 0-24000rpm/min Drive motor Leadshine M860 stepper motor Working speed 35m/min Voltage 220V/380V/50Hz/60Hz Operating system Weihong NK105 DSP system Command G Code Software Ucancam software, Artcam software, Option Interface USB Packing size 3200*2200*1750mm Working area 1300*2500mm Weight 2000kg Application Stone working: engraving various granite, bluestone, marble, gritstone, soapstone and etc.

Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.

Company Information BCAM group is one of manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years since 2002 - Located in Jinan, shandong province, covers the area of 6000 square meters.

Now we have two modern companies.

Now we have mature production workers more than 100 people, 10 sales teams, 2 product research and development teams, 2 after-sales service teams.

Products exported to Europe, America, Australia, Africa, Asia ect.

Our Services: 24 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.

Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

Software is on update for free whole life.

Our engineer could support you technology to your country if necessary.

Our enginner could service on weekend even on vacation.

Our engineer could train you in our factory for free.

Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.

English manual and CD video for machine using and maintaining will send to you with the machine.

We provide overseas after-sales service.

If you have no CNC Router experience or have problems, our engineers can go to your country to provide technical support.
