Fully Automatic Veneer Peeling Line Machines - China

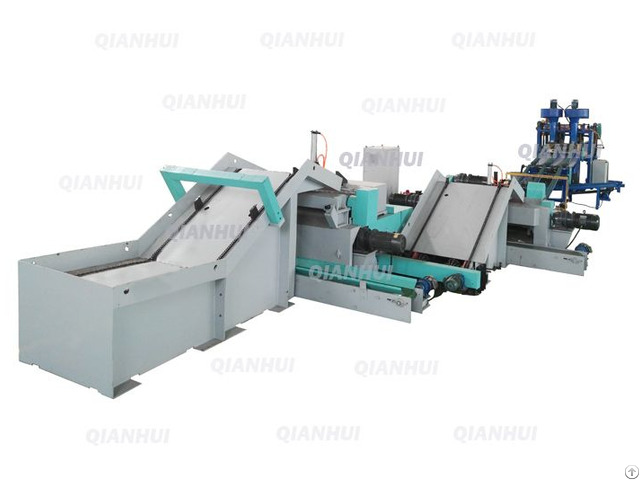

Fully Automatic Veneer Peeling Line Machines

Machines Included In The Automatic Veneer Peeling Line

Item Description Usage Specification

1 Log Cutting Saw To Cut The Two Ends of the logs Working Length 1300mm Cutting Log Diameter φ400 mm Saw Blade No.

4 pcs Saw Blade Diameter φ550mm Motor Power 22kw

2 Log Feeder To Feed Logs From Cutting Saw To Debarker Working Length 1300 mm Motor Power 2.2kw

3 Log Debarker To Debark and Round The Logs



Working Length 1300 mm Working Diameter φ400 mm Debarking Efficiency 5s/Log Motor Power 19kw Control Method Inverter

4 Log Feeder

Conveyor To Feed Logs from Debarker to Veneer Peeling Lathe Working Length 1300 mm Motor Power 4.4kw

5 Veneer Lathe

With Clipper



To Peel The Logs To Veneer and Clip the Veneer Max Peeling Length 1300 mm Max Peeling Diameter φ360mm Left Log Diameter φ26mm Peeling Thickness 0.8-2.6 mm Peeling Speed 42m/min Log Species Hardwood Motor Power 27.5kw

6 Veneer Conveyor To Convey The Veneer To The Veneer Stacker Working Width 1300 mm Conveyor Length 9000 mm Convey Speed 30-120m/min Motor Power 3.0kw

7 Veneer Stacker To Grade The Second and First Grade Veneer, Then Stack The Veneer Worktable Size 1300x1300mm Stacking Speed 30-120m/min First Grade Veneer Stacked Second Grade Veneer Stacked Motor Power 7.0kw

Key Features:

1 - This is fully automatic veneer peeling line, no need any workers, so it can save a lot of labor cost and mange cost for you .

2 - Machines included in this line : Log Cutting Saw, Log Debarker, Spindleless Veneer Lathe with Clipper Builtin, Veneer Conveyor, Veneer Stacker .

3 - Servo motor and servo drive control, electric control system is stable and accuracy is better .

4 - Cameras monitoring the whole production line, so you only need to monitor the whole line working at one place

We are professional in produce automatic wood veneer peeling machine, use our plywood making machinery, it will save your mange cost.
