Heavy Duty Multi Blade Rip Saw Machine For Round Timber Log - China
price: 10000.00 Dollar US$

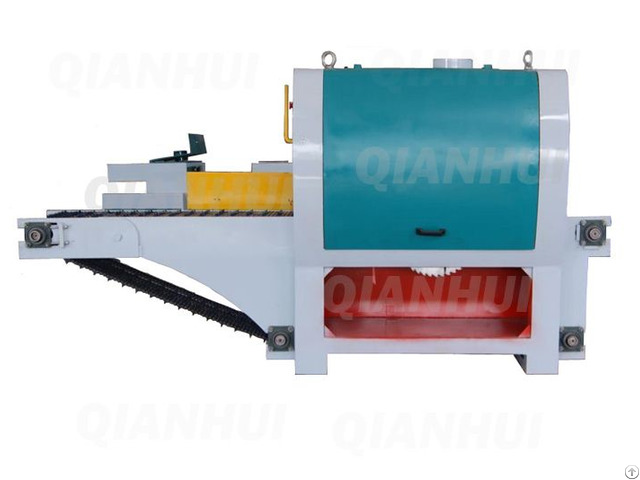

Heavy Duty Multi Blade Rip Saw Machine for Round Timber Log
multi blade rip saw machine
Technical Specification: Model No.
QHZY-180
Min Working Width 80mm
Max Working Width 180mm
Min Working Thickness 80mm
Max Working Thickness 170mm
Min Working Length 500mm
Max Working Length Continuous Feed
Motor Power 18.5kwx2 set
Dimension 4000x1600x1300mm
Weight 1800kg
Model No.
QHZY-240
Min Working Width 100mm
Max Working Width 240mm
Min Working Thickness 100mm
Max Working Thickness 230mm
Min Working Length 700mm
Max Working Length Continuous Feed
Feeding Speed Adjustable
Motor Power 30kwx2sets
Dimension 4200x1600x1600mm
Weight 2220kg
Key Features:
1 - QHZY series log multi blade saw machines are suitable for sawing any kinds of log wood processing (diameter: 150-400mm.
lengt h: more than 1000mm).
This series take hold in long logs processing equipment because of designed and developed with technology innovation and basis on the original log multi blade saw machines.
2 - Main shaft: made of high quality materials, chromium plated, dynamic balance processing, high stability, wear resisting rust.
3 - Cooling system: shafts core spray techinology dustproof environmental protection, saw blades protection, extend the blades lives.
4 - Case: the main box integration, stable performance, aging treatmentdurable.
5 - Bearing: selecting the international well-know brands SKF, dust free heating assembly, high flexible degree of main shafts, extend the blades lives.
6 - Blades: using high quality imported saw blades, heat resistant, wear resistant, deformation.
7 - Feeding: automatic feeding.
8 - Whole advantage: long woods processing, for any kinds of log wood sprocessing, convenient blades handling.
9 - Efficiency: 50-80cube /day.
Company Contact:
- Posted By: Hebei Qianhui Machinery Co., Ltd
- Phone: 0319-7586599
- Address: Xingwan Industrial Area, Ren County, Xingtai , Hebei Province, China
- Email:
- Website: http://www.qhplywoodmachine.com/
Published date: April 28, 2019
- Business Description: Mr Jia Yunao, General Manager of Hebei Qianhui Machinery Co., Ltd, once worked for State-owned Renxian Machine Tool Factory.
In the year 1999, he rented the workshops from the machine tool factory, and founded Renxian Shuntong Machinery Factory with his partner.
Then he started making veneer machines and plywood machines till now.
In order to expand business and plant scale, they renamed the plant Hebei Jiushun Machinery Manufacturing Co., Ltd in the year 2007 - And in the year 2017, they restructured the plant Hebei Jiushun and Mr Jia Yunao started using the new name Hebei Qianhui Machinery Co., Ltd.
