Heavy Duty Servo Veneer Lathe - China

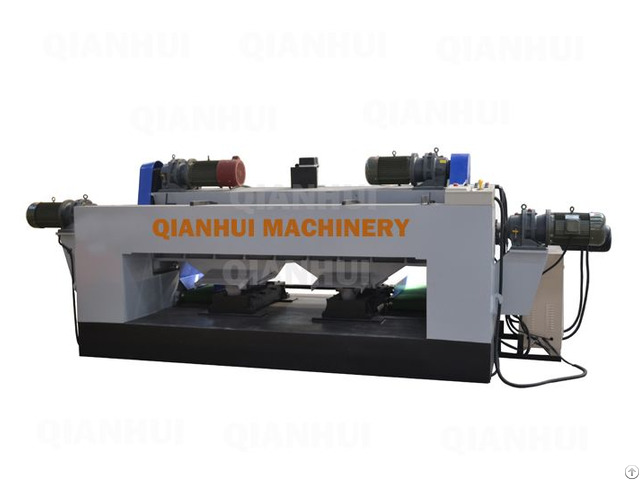

8ft Heavy Duty Servo Veneer Lathe for Face Veneer 0.2 mm

Technical Specification:

Model No BX2600A

Max Peeling Length 2600mm

Max Peeling Diameter 400mm

Left Log Core Diameter 28mm

Peeling Thickness 0.2-3.0mm

Peeling Speed 42m/min

Roller Motors 7.5kw x 4 sets

Feeding Motor 11kw Servo Motor x 1 set

Control System 15kw Servo Drive

Dimension 5600x2200x1800mm

Weight 12000 kg

Key Features:

1 - Heavy Duty: The weight of this veneer lathe is up to 12000 kg, much heavier than other model of machines, so the machines runs very stable, and the peeling precision will be very good, and this makes it suitable for peeling all kinds of hardwood logs

2 - Servo System: This veneer lathe is equipped with 11kw Servo motor and 15kw Servo Drive Inverter, the control precision is much better than normal motor and normal inverters

3 - Wide Thickness Range: This veneer lathe can peel thin as 0.2mm and as thick as 3.0mm, one machine will meet your demand for peeling different kinds of veneer, core veneer and face veneer peeled in one machine.

4 - Double Slide-way System: It has double sliding way system supporting the knife table, at the two ends are the surface slide system, and in the middle are the dove tail slide system supporting, so the knife table runs smoothly and stably, which will make the veneer very beautiful .

5 - High Rigidity Rollers: Rollers are quenched and chrome plated, rigidity is better and harder, service life longer .

6 - Bearings Well Sealed : All bearings are attached with seals, which makes the bearings better lubricated and can be used for longer time .

7 - Popular in India and Indonesia: we have agent in India and Indonesia, they are selling this model in their countries and the selling is very good, customers think highly of this machine because of its good veneer quality and good machine performance .

Hot sale various high quality wood veneer rotary equipment from china leading manufacturer.

Our products are cost effective Welcome to choose us!
