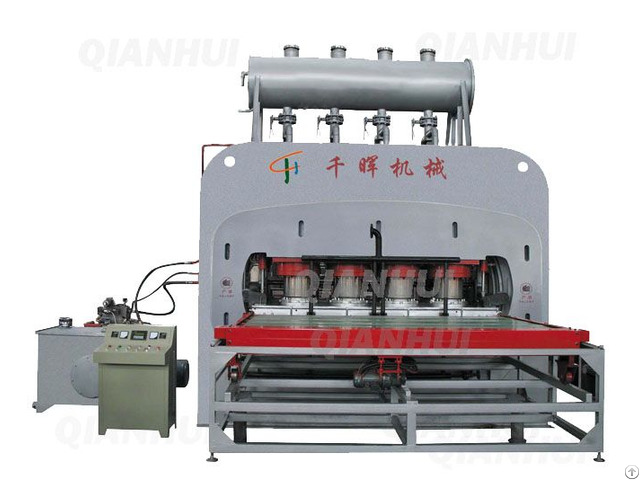

1600Tons Short Cycle Lamination Hot Press Machine

General Instruction for the Shor Cycle Lamination Hot Press Machine：

1.1 Pressing Thickness Range: 8mm—45mm

1.2 Capacity: about 70 sheets/hour

1.3 Infeed Method: Belt Trolley Infeed

1.4 Operator Required: two workers for paving the paper, one worker for inspection, and one worker for outfeed

Detailed Parts Included:

Main Press Machine

Hydraulic Station

Control Panel Box

Infeed Belt Trolley

Outfeed Trolley

Upper Oil Can

Technical Specifications: Model QH214x8/160-1

Nominal Pressure 16000 KN

Unit Pressure ≤53.7kg/cm2

Finished Board Size 1220x2440mm

Thickness Range of the Board 8-45mm

Infeed Direction Horizontal

Lamination Sides Double Size

Motor Power 22.75kw

Hot Platen Size 1400*2600mm

Thickness of Upper Platen 140mm

Thickness of Lower Platen 100mm

Temperature of Hot Platen ≤200℃

Weight 41 Tons

Main Cylinder Ф320mm×8pcs

Stroke of Main Cylinder 200mm

Lifting Cylinder Ф63mm×4pcs

Hydraulic Pressure ≤25MPa

Hydraulic Oil 46# Fire Resistant Oil, 6cansx170 kg/can
