Wood Veneer Rotary Lathe With Clipper 2 In 1 Machine Heavy Duty - China

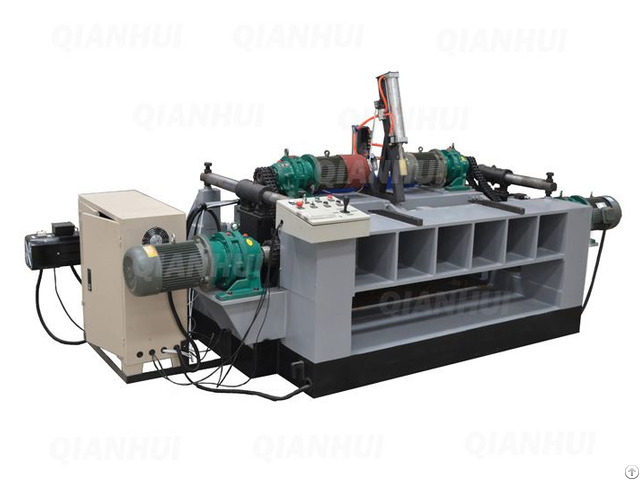

Wood Veneer Rotary Lathe With Clipper 2 in 1 Machine Heavy Duty

Technical Specification:

Model No.

BX1400A Max Peeling Lathe 1300 mm Max Peeling Diameter 360 mm Left Log Diameter 26 mm Peeling Thickness 0.4-2.6mm Thickness Error ±0.05 mm Peeling Speed 45m/min Knife Size 1400x180x16 mm Roller Diameter 102 mm Roller Motors 5.5kw x 4 sets Feed Motor 7.5kw motor x 1 set Control System Inverter+PLC Dimension 3500x1900x1350 mm Weight 5500 kg Key Features:

1 - 2 in One: Two functions veneer peeling and veneer clipping combined in one machine, so no need to buy another veneer clipping machine

2 - Save Labor Cost: As the veneer will be directly cutted after peeling, so no need one worker between clipping machine and peeling machine, 3 - Make Full Use of Wood Log: This machine can keep the last piece of veneer full size, lets say, you are peeling and cutting veneer 1270x640, it can make the last piece right size 640 width, so you can will make more profit .

4 - Servo System: This veneer lathe is equipped with 7.5kw Servo motor and 11kw Servo Drive Inverter, the control precision is much better than normal motor and normal inverters

5 - Heavy Duty: The weight of this veneer lathe is 5300kg, much heavier than other model of machines, so the machines runs very stable, and the peeling precision will be very good, and this makes it suitable for peeling all kinds of hardwood logs

6 - Slide pressing bar: There are two slide pressing bars on top of the machine, to press the knife and single roller table, so as to keep them more stable when the machine working, and to keep the high precision

7 - High Rigidity Rollers: Rollers are quenched and chrome plated, rigidity is better and harder, service life longer .

8 - Bearings Well Sealed : All bearings are attached with seals, which makes the bearings better lubricated and can be used for longer time .

Qianhui is a plywood production supplier, we recommend our core veneer rotary equipment.

It has the feature with veneer peeling and veneer clipping combined in one machine, it can improve you profile.
