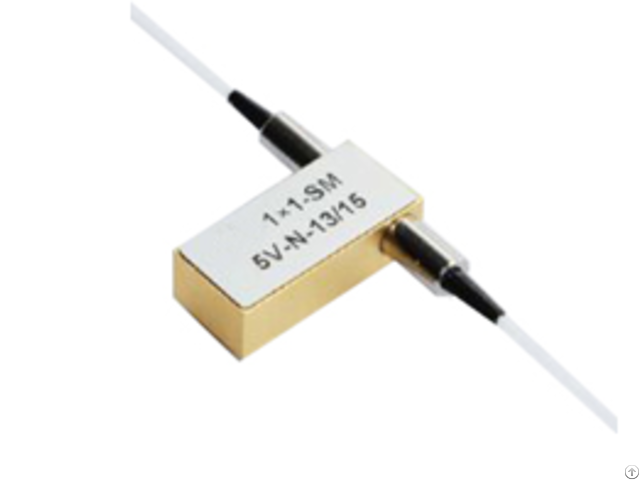

1x1 Optical Switch - China

Feature:

Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Latching and Non-latching

Application:

Sub-system Integration

Optical Network Monitoring/Protection

Route Fiber Test System

Re-configurable OADM

Test & Measurement Equipment Manufacturing Application

Network Test System

Specifications:

Parameter Unit Multimode Singlemode

Operating Wavelength nm 850/1300 1280 ~ 1340 / 1520 ~ 1625

Insertion Loss dB Typ: 0.5 Max: 0.8 Typ: 0.4 Max: 0.6

Return Loss dB SM≥50, MM≥30

Crosstalk dB SM≥70, MM≥65

PDL dB ≤0.05

WDL dB ≤0.25

TDL dB ≤0.25

Repeatability dB ≤±0.02

Power Supply V 3.0 or 5.0

Lifetime Times ≥107

Switch Time ms ≤8

Transmission Power mW ≤500

Operating Temperature ℃ -20~+70

Storage Temperature ℃ -40~+85

Dimension mm (L)27×(W)12.6×(H)8.0 (±0.2)

Note: 1 - Specification may change without notice.

2 - Above specification are for device without connector.



Pins

Type Pin Electric Drive Status Sensor

1×1 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9

Latching P1-P2 V+ GND -- -- Open Close Close Open

Light close -- -- GND V+ Close Open Open Close

Non-latching P1-P2 V+ -- -- GND Open Close Close Open

Light close -- -- -- -- Close Open Open Close

Optical Route

Specifications Voltage Current Resistance

5V latching 4.5~5.5 36~44mA 125Ω

5V non-latching 4.5~5.5 26~32mA 175Ω

3V latching 2.7~3.3 54~66mA 50Ω

3V non-latching 2.7~3.3 39~47mA 70Ω

Order Information:



Type Fiber Core Wavelength Voltage Control Fiber OD Fiber Length Connector

1=1x1

2=1x2

3=2x2

X=other SM=9/125

M5=50/125

M6=62.5/125

XX=other 1=850nm

2=1300nm

3=1310nm

4=1490nm

5=1550nm

6=1625nm

7=1650nm

8=1310/1550nm

9=1260~1650nm 3=3V

5=5V L: Latching

N=Non-Latching A =250 mm bare fiber

B =900 mm loose tube

X=other 10=1.0 m

15=1.5 m

30=3.0 m

XX=other 0=None

1=FC/PC

2=FC/APC

3=SC/PC

4=SC/APC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

X=Others
