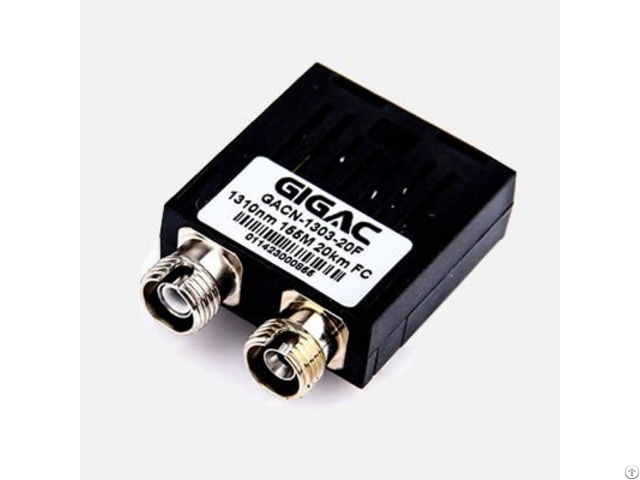

1x9 155m Series Optical Module - China

Gigac’s 1x9 155Mbp sseries Transceiver is designed for use in OC-3/STM-1 T It provides the SC/FC/ST optical port that is compatible with the industry standard connector.

Both the transmitter and the receiver are packaged together with a top plastic cover and bottom shield.

The transceiver operates with 3.3V power supply.

The transmitter section incorporates FP laser and driver IC with temperature compensation and automatic power control circuit.

The receiver section incorporates PIN for wide dynamic range.

This transceiver has excellent immunity and reliability.

Features Optical transceivers features 1X9 Pin Package Dual data-rate of 155Mbps operation With SC, FC, ST fiber connection interface 1310nm FP Laser and PIN photo detect or with for 2km Single+3.3V Power Supply, Standard LVPECL logical interface, LVPECL Signal detect output Compliant with ClassILaserEyeSafety Compliant RoHS2.0 Applications Fast Ethernet Fiber Channel Other Fiber Link
