2u Network Security Appliance Supports 1g Or 10g Sfp Rj45 Gbe Networking Ports - China

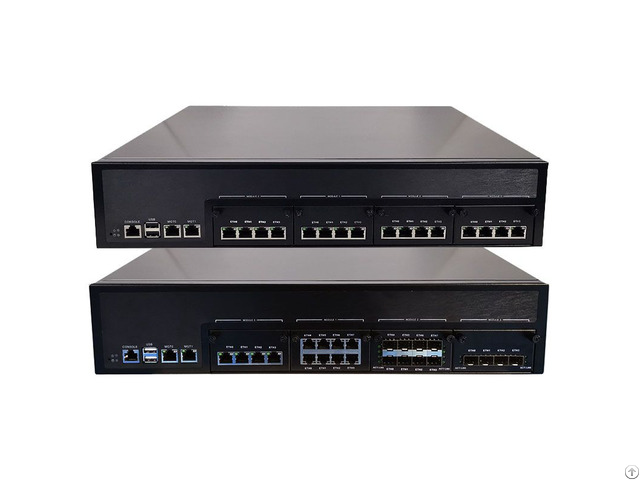

2U network appliance max 32 GbE lan ports Supports Gen6 Gen7 Xeon E3 or i3 i5 i7 processors F23224 is a x86 rackmount network hardware appliance with network application motherboard based on Supports Gen6/Gen7 Xeon E3 or i3/i5/i7 processors and four lan cards up to 32 GbE or 8 10G SFP network ports.

It's ideal for DDoS, enterprise UTM, enterprise firewalls, intrusion prevention systems (IPS), application delivery and WAN optimization.

[F19401] Desktop network appliance with 4GbE optional a switch lan cards [F23611] 1U network appliance 6 GbE max 14GbE with 2 lan bypass [F19611] 1u Rackmount network Appliance with 6 GbE network ports [F23622] Rackmount network appliance based on C236 chipset Xeon or i3 i5 i7 CPU max 22GbE [F23224] 2U network appliance max 32 GbE lan ports Supports Gen6 Gen7 Xeon E3 or i3 i5 i7 processors [F19613] Fanless network appliance max 10 GbE Optional NIC modules 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers

58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers

58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers

58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers

58F8 8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers

35NF4 4 GbE RJ-45 and 4GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers

58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass

59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers

59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass

71W4 4 10G SFP based on Intel XL710 controllers Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors Intel C236 chipset Four dual channels 2133/2400MHz DDR4 slots, up to 64 GB Two GbE Console ports, support four NIC modules up to 32 GBEs Four SATA3.0 6Gb/s, support RAID 0, 1, 5, 10 Supports USB3.0, mSATA, COM Motherboard CPU Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors

Chipset Intel C236

BIOS UEFI BIOS

System memory Four dual-channels DDR4 ram slots, up to 64GB Storage Interface Four SATA3.0 connectors support RAID 0, 1, 5, 10

Hard Drive Four 3.5/2.5" HDD trays

SSD One mSATA slot Ethernet LAN Port Two 10/100/1000Mbps RJ-45 ports

Ethernet Controller Two Intel PCIe controllers System I/O USB Two USB3.0 Internal with four USB2.0 and two USB3.0

COM One RJ-45 COM

Indicator One Power LED, one HDD LED

LCM module Optional 2x16 characters LCM display module

Video Built-in one VGA interface, support hot plug(Internal)

Watchdog Timer Software programmable supports 1~255sec System reset

Expansion Four PCIex8 for 4 expansion lan cards and one built-in PCIEx4 Power supply Power consumption Built-in 300W power supply

Power input 100 ~ 240V AC input

Optional DC power or Redundant power Environmental Mounting Supports rack-mounting or desktop-mounting

Operate Temperature -10°C ~ 50°C

Storage Temperature -20°C ~ 75°C

Operate Humidity 5% ~ 85% non-condensing @ 40°C

Storage Humidity 5% ~ 95% non-condensing Mechanical Chassis Color Black or OEM

Front panel Silver PVC/Aluminum font panel(OEM/Neutral)

Construction 2u chassis, Heavy duty metal

Dimensions (D x W x H) 550x440x88mm

Weight 18.3 kg
