2x2ba Mechanical Optical Bypass Switch - China

Product Description

2x2BA Mechanical Optical Bypass Switch - Introduction

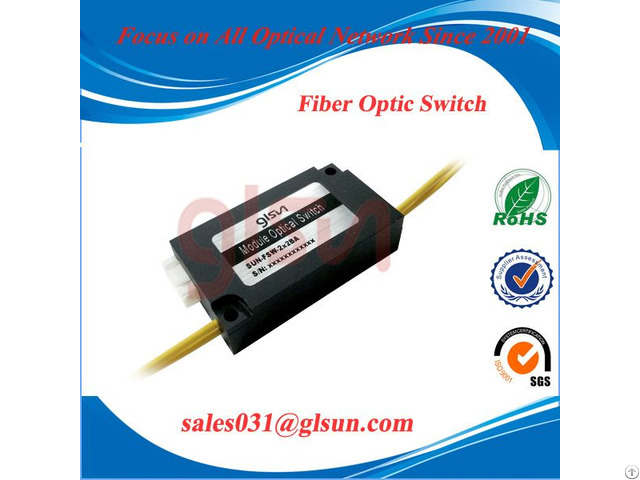

SUN-FSW-2x2BA Mechanical Optical Bypass Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0x(W)26.0x(H)10.0mm .

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

GLSUN fiber optic switches can be widely used in optical network protection, transmitter and receiver protection, network test system and instrumentations.

Features Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching Applications

R&D in Laboratory

System Monitoring

OADM

MAN (Metropolitan Area Network) Specifications

2x2BA Mechanical Optical Bypass Switch - Specifications

Parameters

Unit

SUN-FSW-2x2BA

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1, 2

dB

Typ: 0.8 Max: 1.0

Return Loss 1, 2

dB

≥ 50

Crosstalk 1

dB

≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3 or 5

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

25

Dimension

mm

(L)55.0×(W)26.0×(H)1 0.0 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
