400g Qsfp Dd Sr8 100m Optical Transceiver - China

price: check with company for price

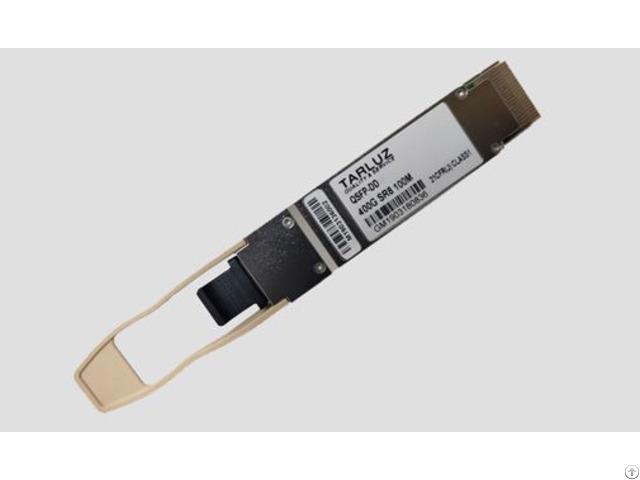

400g Qsfp Dd Sr8 100m Optical Transceiver

Products Photos Catalog 400g Qsfp Sr8 100m Photos Catalog

TARLUZ 400G QSFP-DD SR8 Optical Transceiver is a Double Density QSFP Transceivers with eight-channel.

It is designed for 400G Ethernet (2 x 200GBASE-SR4) applications.

The QSFP-DD transceivers integrate eight data lanes in each direction with data rate up to 53.125Gbps.

Each lane can up to 70m over OM3 fiber or 100m over OM4 fiber.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

The electrical interface uses a 76 contact edge type connector.

Features

1 - Hot-pluggable QSFP-DD form factor

2 - Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

3.8 channels full-duplex transceiver module, Transmission data rate up to 53Gbps per channel

4.8 channels 850nm VCSEL array and 8 channels PIN photo detector array

5 - Internal CDR circuits on both receiver and transmitter channels, Support CDR bypass

6 - Low power consumption <10W

7 - Built-in digital diagnostic function

8 - Operating case temperature 0°C to +70°C

9.3.3V power supply voltage

10 - RoHS 6 compliant (lead free)


Company Contact:


  • Phone: 0086-21-54475318

  • Address: 3F, Building 1, No. 2528 Zhennan Road, Putuo District 200331, Shanghai China., shanghai , shanghai , China

  • Email: Email


Published date: June 30, 2020 - Modified date: June 30, 2020

  • Business Description: TARLUZ is a leading fiber optic manufacturer based in Shanghai of fibre optic and networking products with full manufacturing facilities, dedicated in serving Telco, ISPs, Cable TV providers, Contractors, Engineering company etc all over the world.

    Tarluz designs, develops, manufactures and sells fibre optic cabling, connectivity, management and systems solutions.

    We offer a broad range of products directly and through distributors, installers and OEM partners.

    The product range includes MTP MPO Fiber Optics, PON Passive Optic Network, Fiber Optic Test Equipment, Fiber Optic Splicing, Cable Management, Fiber Optic Cable, Tools and Tool Kits.
