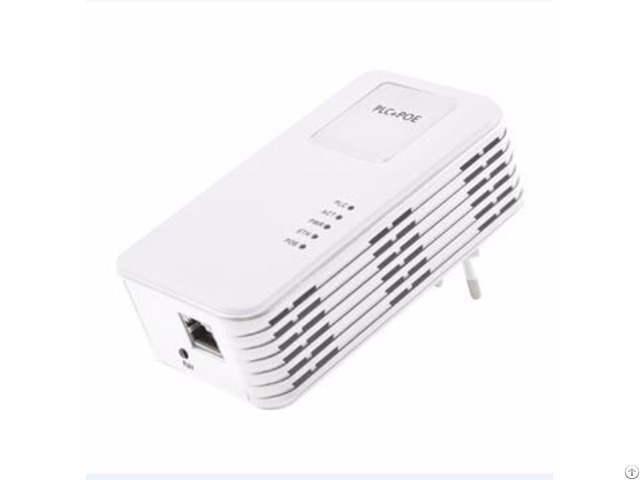

500mbps With Poe Network Extender Home Plug Plc Module Ethernet Bridge Powerline Adapter - China

DESCRIPTION Item No.

WD-500M-PoE

Interface 1*LAN10/100Base-TX applied for RJ45 interface

LED display lights PWR(power light), PLC(PLC signal light), ETH(Ethernet light)

Transmission band 2-68MHz

Protocol HomePlug AV

IEEE 802.3 IEEE 802.3u 10/100Ethernet Standard

Security 128-AES Transfer rate(PHY) 500Mbps Modulation OFDM

Plug EU, UK, AU, US

Support operating system Windows 98/ME/NT/2003/7 Windows XP Home/Pro Mac OSX Linux Power source AC 100V-240V 60/50Hz

Operating environment working temperature: 0 ℃-70℃

Working humidity 10%-90% non-condensed state

Size 96.5mm×66mm×26.6mm(L×W ×H) Weight 0.20kg

Certification FCC CE ROHS Features

*High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply

*The high-speed transfer rates of 500Mbps even make it possible to transmit video in DVD quality

*No need new wires and use at any power socket with up to ranges of 500 meters

*Simple plug and easy to install

*Fully compliant with IEEE 802.3 / 802.3u and HomePlugAV standard

*Provide 128-bit AES link encryption for Powerline networks

*Up to 500Mbps data rate on Powerline networking

*Allow user to connect PCs and other devices conveniently via any power outlet at home
