Alignsat 1 2m Flyaway Carbon Fiber Auto Antenna - China

price: 35000.00 Dollar US$

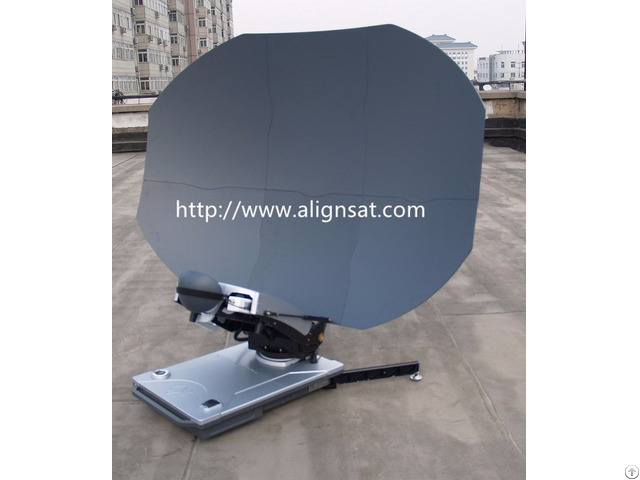

Alignsat 1 2m Flyaway Carbon Fiber Auto Antenna

Products Photos Catalog Alignsat Flyaway Photos Catalog

Set up time ≤5Mins (from unlock the box to establish the satellite link)

Stow time ≤3Mins

Azimuth range +90°～+270°

Elevation range Face south: 25°～ +90°(Factory preset)

Face north: 4°～ +90°(Factory preset)

Polarization range ±95°

Style of the antenna Modified double offset Gregorian antenna

Polarization mode Linear polarization

Size of the reflector 1250 × 1100 mm(the whole)

Equivalent 1.2m

Antenna weight ≤26.98Kg The host; 22.7kg, The reflectors;4.28kg(include LNB, not include BUC))

Power 110 or 220VAC±10% (well connect with the ground)

Power consumed ≤68W(Peak value), not include BUC

Reflector material Carbon fiber

Reflector parts 6 pieces with curve edge include 5 detachable side-pieces and 1 main piece.

Operating wind speed Steady wind≤50km/h(need balance weight);Gust≤65km/h(Str engthen balance weight)

Operating temperature -25℃~+55℃

Storage temperature -55℃~+85℃

Altitude ≤5000m

Protection grade IP55

Relative humidity 0%~100%

Name Receive Transmission

Operating Freq.

Band 10.95～12.75 GHz 13.750～14.50 GHz

Gain ≥41.6+20log(f/12.5)dBi ≥42.8+20log(f/14.25)dBi

The first sidelobe ≤-14dB ≤-14dB

Cross polarization ≥35dB(on axi); ≥31dB(offset 1dB)

VSWR 1.25: 1 1.25: 1


Company Contact:


  • Phone: +862981114837

  • Address: 16TH Floor, Unit 1, Building 3, Garden Plaza, 11# Tang Yan South Road, High-tech Development Zone, Xian , Shaanxi , China

  • Email: Email


Published date: December 5, 2016

  • Business Description: Alignsat, a leading manufacturer of VSAT antenna, Earth station antenna, TVRO antenna, Flyaway antenna, Maritime antenna, Vehicle mounted antenna, Antenna controller, Antenna tracking receiver, Satcom on the move etc.

    with installation and commissioning test, training services.

    Also customized products are welcomed.
