Coarse Wavelength Division Multiplexer - China

CWDM

Coarse Wavelength Division Multiplexer (CWDM) Utilizes Thin Film Coating Technology and Proprietary Design of Non-flux Metal Bonding Micro Optics Packaging

Features:

Low insertion loss, low PDL

High Isolation

Compact Design

Good channel-to-channel uniformity

High Reliability and Stability

Compliance with Telcordia GR-1221/1209

Application:

CWDM System

PON NET Works

CATV LINKS

Optical Specifications:

Parameter Value

Channels Number 2 4 8 16 18

Central Wavelength（nm） ITU-T Grid

Bandwidth(@0.5dB Pass band)（nm） ITU-T ±6.5

Channel Pass band（nm） 20

I.

L（dB） Typ.

1.2 1.6 2.2 3.2 3.8

MAX.

1.4 1.8 2.8 5.0 5.6

Ripple（dB） ≤0.3

PDL（dB） ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30

Isolation（dB） Adjacent Channel ≥30

Non-adjacent Channel ≥45

Directivity（dB） ≥50

R.

L（dB） ≥45

Operating Temperature（℃） -5~+75

Storage Temperature（℃） -40~85

Note: All the data above does not include connectors

Order Information:

Type Port Wavelength Pigtail Fiber Length Connector

（Input-Output） Package

M=Mux

D=Demux

1002=1X2 1004=1X4

2008=1X8

2016=1X16

XX=other 27=1270

47=1470

49=1490

61=1610

XX= other L=900um loose tube

2=2.0mm

3=3.0mm 1=G652D

2=G657A1

X= other 05=0.5m

10=1.0m

15=1.5m

20=2.0m SU=SC/UPC SA=SC/APC

FU=FC/UPC FA=FC/APC

ST=ST/UPC LA=LC/APC

LU=LC/UPC 00=NONE

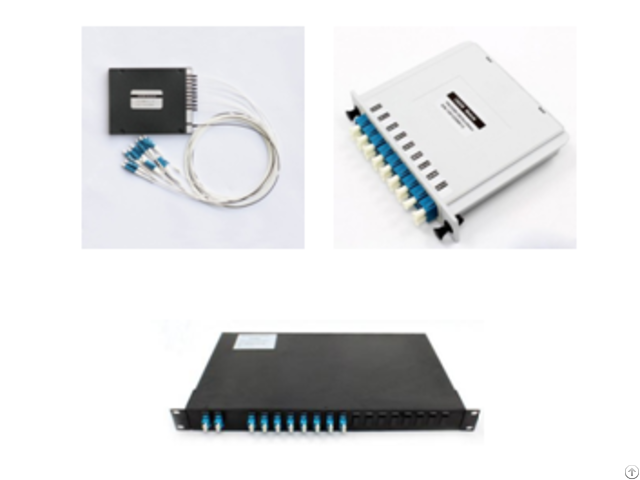

XX= other PS=100X80X100

PL=140X115X18

LX=LGX BOX

19=19” 1U

XX= other
