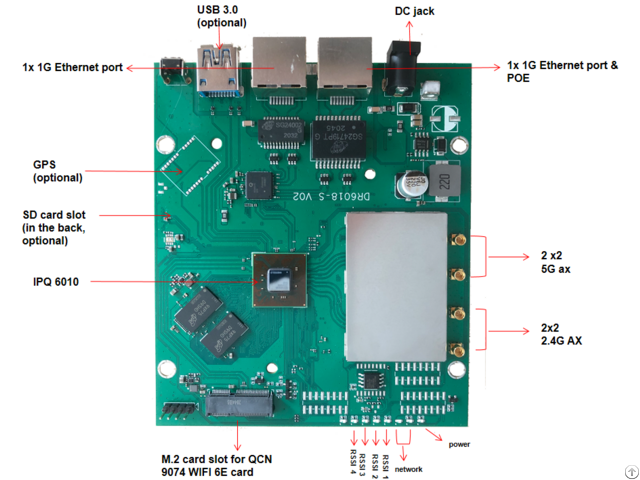

Dr6018 S V02 802 11ax Industrial Router Board - China

802.11ax industrial router board CPU Qualcomm-Atheros IPQ6010 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports NGFF Slot M.

2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module) SD Card Slot 1x SD Card Slot(Option) USB /header 1x USB 3.0 Port(Option) POE 24V~48V passive POE/Active POE(Suport 802.3bt) DC Jack 24V~48V power supply LED header 2.0 pitch pin header Serial Port 1x Serial Port 4 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors Nor Flash 8MB Nand Flash 256MB DDR 256MB~512MB Dimension 125mm x 105mm x 20mm
