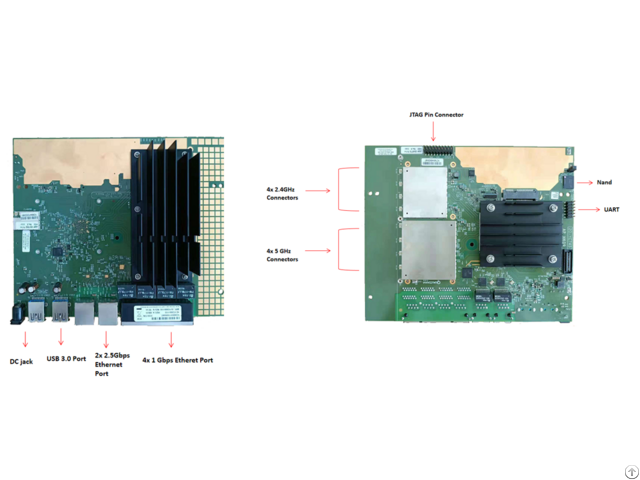

Dr8072a Hk09 802 11ax Industrial Router Board - China

CPU Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8072A 2.2GHz CPU CPU Frequency Derived from Qualcomm Atheros AP.

HK09 System Memory 1x 512MB, DDR4 2400MHz 16-bit interface Frequency Range 2.412~2.472GHz, 5.150~5.825GHz MiniPCIe Slot 1x MiniPCIe Slot with PCIe 3.0 Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Environmental Temperature Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC Flash NOR Flash: 8 MB NAND Flash: 256MB Wireless On-board 4x4 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 17dBm per chain On-board 4x4 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 17dBm per chain 8x U.

FL Connectors Reset Buttons 1x S/W Reset Button DC Jack Input 1x DC Jack Connector: 12V Interface 4x 1Gbps Ethernet Port, 2x 2.5Gbps Ethernet Port 2x USB 3.0 Port 1x JTAG 20 Pin Connector 1x Serial Port 4 Pin Connector LED 2x RGB LED Indicators Power Consumption TBD
