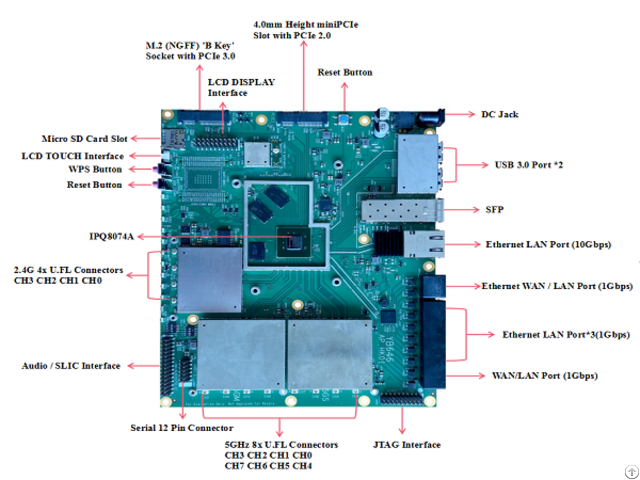

Dr8074a Hk01 802 11ax Industrial Router Board - China

802.11ax industrial router board CPU Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8074A 2.2GHz CPU CPU Frequency Derived from Qualcomm Atheros AP.

HK01 System Memory 1GB (2x 512MB) DDR3L 32-bit interface Frequency Range 2.412GHz to 2.472GHz, 5.150GHz to 5.825GHz Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM NGFF Slot for 5G Module M.

2 (NGFF) “B Key” Socket with PCIe 3.0 interface Optional Onboard Modules Supports 1x BT module, 1x ZigBee module, 1x Touch pad connector, 1x Audio header, 1x LCD display header Flash NOR Flash: 32MB NAND Flash: 256MB

eMMC: 8GB Wireless On-board 4x4 2.4GHz MU-MIMO 802.11b/g/n/ax, max TBDdBm per chain

On-board 2x(4x4) or 8x8 5GHz MU-MIMO 802.11a/n/ac/ax, max TBDdBm per chain

12x U.

FL connectors Reset Buttons 2x Hardware reset button, 1x WPS reset button DC Jack Input 1x DC Jack Connector: 12V, 5A Interface 5x Gigabit Ethernet (1GbE) LAN/WAN RJ45 Port (Auto MDI-X) 1x 10Gigabit Ethernet (10GbE) LAN/WAN RJ45 Port (Auto MDI-X) 1x SFP+ Port

2x USB 3.0 Port

1x Serial Port 12 Pin Connector 1x JTAG 20 Pin Connector

1x micro SD Card Socket

1x M.

2 Slot LED 13x LED indicators, 2 additional LED on Ethernet port Power Consumption TBD
