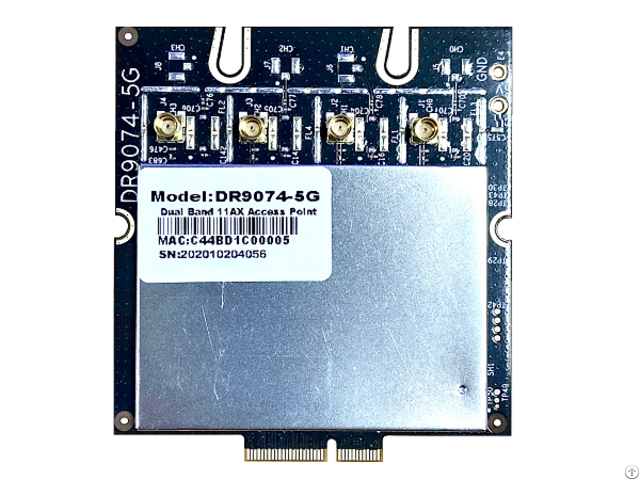

Dr9074 5g Pn02 1 802 11ax Industrial Network Card - China

5GHZ wifi6 Chipset Qualcomm Atheros QCN9074 WLAN Host Interface PCI Express 3.0 Interface System Memory 2Mbit serial I²C bus EEPROM Standard Operating Voltage 5V Operating Systems QSDK Host Interface M.

2 E Key Antenna Cable / Port 4 x MMCX Connectors, 4T4R Frequency Range 5.15GHz-5.95GHz Data Rates for WALN 5GHz, max 23dBm per chain, up to 4949Mbps Channel Spectrum Widths for WLAN Support 20/40/80/160MHz at 5GHz Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM Temperature Range Operating: -20°C to 70°C, Storage: -40°C to 90°C Humidity Operating: 5% to 95% (non-condensing), Storage: Max.

90% (non-condensing) Certification TBD Power Consumption TBD Reference Design PN02.1 Dimensions (WxHxD) 57mm x 63mm x 6mm ■ Qualcomm Atheros QCN9074 ■ 5GHz, max 23dBm per chain, up to 4949Mbps ■ Single Band 5GHz 4x4 WiFi 6 (802.11ax) ■ 4 spatial streams (4SS) ■ M.

2 E Key Interface ■ PCI Express 3.0 Interface ■ Supports Dynamic Frequency Selection (DFS)

Company Contact:

• Posted By: Wallys Communications Suzhou Co Ltd

• Phone: +8615527303600

• Address: 116 ChengYang Road, XiangCheng District, SuZhou City,JiangSu Province, China, Suzhou , China

• Email:

• Website: https://www.wallystech.com/

• Business Description: Wallys Communications (SuZhou) Co.,Ltd was established in 2010 - The company is a techno-innovation enterprise specializing in the independent R&D, production and sales of wireless network products and offering wireless solutions.

  The company utilizes its own professional knowledge and the top research and development team unceasingly breaks through, we have the hardware, the software, the RF, the antenna, the enclosure and so on design ability.

  To provide customers with customized services, products from Design - Test -Certification - Production of one-stop convenient services.

  Wallys independent research and development and production of standard and proprietary protocol of wireless bridge, wireless AP, and frequency conversion equipment related products, comprehensive application in security, transportation, ports, oil fields, mines, logistics, electric power, tourism, forest fire prevention, safe city and other industries, won the general customers the consistent high praise, has the good public praise and reputation in the industry.
