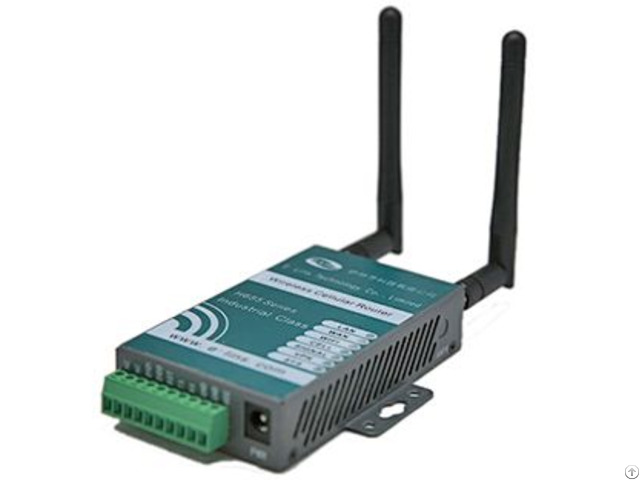

The H685 series Cellular Router designed for establish a 2G/3G/4G cellular and Wi-Fi wireless network and share a cellular broad band Internet connection.

The H685 series Cellular Router enables users to quickly create a secure Wi-Fi (802.11 b/g/n) network and provide access to the Internet using a cellular network.

By connect to cellular mobile network; an Internet connection can be accessed and shared virtually anywhere within a wireless broadband network.

E-Lins’ mobile data products are widely used in industrial fields, such as power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

2 - Hot Spot

Built-in 2G/3G/4G industrial cellular module and sim card slot, insert SIM/UIM card to work directly.

Auto-dial feature, keep alive link

Built-in watch dog

1 WAN RJ45 port + 1 LAN RJ45 port (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45)

VPN (PPTP, L2TP, IPSec, GRE, Tunnel), SNMP

standard SMA antenna can be replaced with high gain type

Terminal port for DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 option)

WiFi 802.11b/g/n 150Mbps (optional), can choose 300Mbps.

RJ45 WAN (xDSL) and Cellular backup each other (Route Fail Over Feature)

Two H685 can backup each other if one H685 line failed.

(to be Dual sim dual module feature)

Always online, Reboot if the connection is failed.

WiFi can be used as WiFi client

Cellular, WAN RJ45 and WiFi Client can failover backup each other redundancy.

SMS/Voice call to control router to be online and offline (optional)

GPS (optional)

VRRP

RIP OSPF BGP (optional)

I/O port *2 (optional)

POE support (optional) 3 - Wireless M2M Application

Remote Data Monitor and Control

CCTV, security monitoring

Water, gas and oil flow metering and schedule

AMR (automatic meter reading)

Power station monitoring and control

Remote POS (point of sale) terminals, ATM, Traffic signals monitor and control, Traffic info guidance

Oil field, weather forecast, environmental protection, street lamp monitoring and control

Early Warning of Mountain Torrent

Fleet management

Power distribution network supervision

Central heating system supervision

Weather station data transmission

Hydrologic data acquisition

Vending machine

Telemetry, SCADA

Vehicle logistics and diagnostics controlling

Parking meter and Taxi Monitor

Telecom equipment supervision (Mobile base station, microwave or optical relay station) 4 - H685 Series Wireless Broadband Router Spec Mobile Networks: GSM EDGE/GPRS;

CDMA1x;

3G UMTS WCDMA (HSDPA/HSUPA/HSPA/HSPA+);

3G TD-SCDMA

3G CDMA EVDO Rev 0 and Rev A;

4G LTE;
