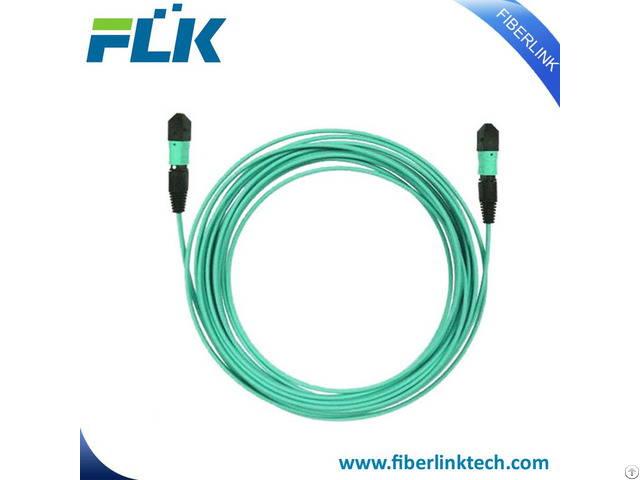

Fiber Optic Mtp Mpo Om3 12 Cores Trunk Cable Assembling Patchcord - China

Descriptions

Fiberlink MTP/MPO Trunk Cable Assemblies are designed for high density application which offers excellent benefits in terms on-site installation time and space saving.

These plug and play solutions uses micro core cable to maximize bend radius and minimize cable weight and size.

MPO/MTP Trunk Cable are factory pre-terminated, tested and packed along with the test reports.

Available in 12 core configuration, these space saving assemblies comes with either MTP Male or MTP Female Connectors on both the other end.

They are available in lengths of 5, 10, 20, 50, 100 meters, custom lengths are available on request.

MPO/MTP Trunk Cables are available in Single mode, Multimode OM1, OM2, OM3 or OM4 with LSZH or PVC Jackets.

Features

High Density Back Bone Cabling

Pre-terminated at Factory

Plug and Play, Speedy Installation

No onsite termination

65 - 75% space reduction

MTP 12 Core Connector on both ends

Test Report with each assembly

Optical Specifications

Polishing Connector MPO Female (SM) MPO Female (MM)

Insertion Loss (IL) < 0.50 dB < 0.50 dB

Return Loss (RL) > 50dB > 35dB

Mating Cycles Delta IL < 0.2 dB after 500 mating cycles

Fiber Cable Type Single mode: G652D or G657A;

Multimode: OM1, OM2, OM3 OM4;

Cable Color Yellow for SM G652 and G657A fiber;

Orange for MM OM1 and OM2 fiber;

Aqua for MM OM3 fiber;

Cable Jacket Ribbon / Fan-out (LSZH / PVC)

Patch Cord Pull-out Force 5N

Operating Temperature -20°C~+70°C

Storage Temperature -40°C~+80°C Bare Fiber Colors

No 8 Ribbon fiber No 12 Ribbon fiber

1 Blue 1 Blue

2 Orange 2 Orange

3 Green 3 Green

4 Brown 4 Brown

5 Gray 5 Gray

6 White 6 White

7 Red 7 Red

8 Black 8 Black Yellow 9 Yellow Violet 10 Violet Pink 11 Pink Aqua 12 Aqua
