Fiber Ranger Hand Hold Otdr Shinho X 5005 - China

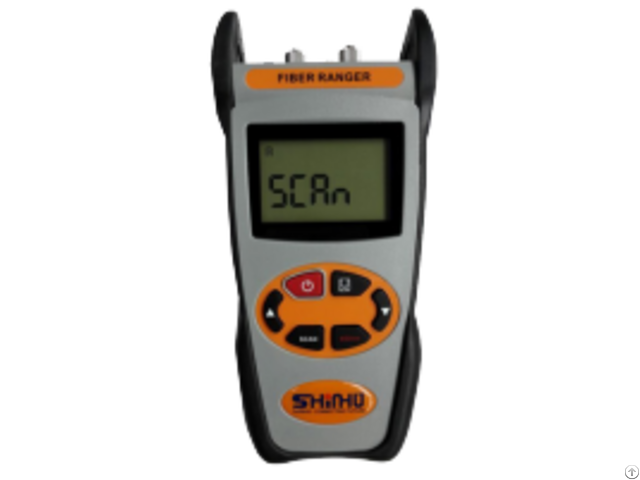

Optical Fiber Ranger X-5005 Fiber Ranger X-5005 is the most portable test instrument in the industry.

It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the fiber ranger to detect fiber faults location more accurate and easy.

Features Portable, rugged, lightweight; Easy to use;

More accurate testing results and better repeatability;

Up to 8 fiber faults can be detected in each measurement;

Automatic Pulse Width Control design to ensure a convenient operation;

Easy to identify the faults location;

Liver fiber detection

OTDR connector for the fiber ranger port

Built-in visual fault locator (VFL), conveniently to find the faults in dead zone;

Long battery life, up to 5000 measurements operation

Data storage function, up to 1000 test records

USB communication port for saved testing records download

Specifications Operating Wavelength 1550nm(1310nm Optional) Fiber Type 9/125um SM Fiber Optical Connector Type FC/PC Detector Type InGaAs Peak Power of laser(mW) ≥60 Max.

Displaying Distance Reflection Event(km) 60 (≥1dB) Non-reflection Event(km) 20 (≥2.5dB) Measurement Unit M Reflection Event Dead Zone 15m Distance Accuracy(Reflection Event) ±(2m+2*10(-4)XDistance) Wavelength of VFL Option(nm) 650 Output Power of VFL Option(mW) ≥1mW Date storage capacity 200 Communication Port USB Power Supply Alkaline Battery (3pcs AA 4.5V Batteries) Battery Operating Time ≥5000 measurements Working Temperature(ºC) -5~40 Storage Temperature(ºC) -10~60 Humidity 0~85%(Non-condensation) Dimensions(mm) 200 X90 X50 Weight(g) 320 Standard Accessories NO.

ITEM

1 Fiber Ranger

2 Manual

3 Soft carrying case

4 1.5V AA batteries

5 USB data line

6 Cotton swabs
