Ftth Assembly Sc Fusion Splice On Optical Fiber Fast Connector - China

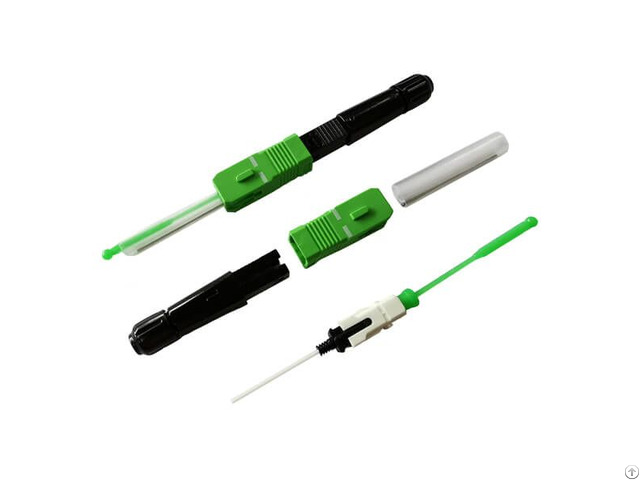

FTTH Assembly SC Fusion splice on connector is optical fiber fast connector, which used for splicing point inside the connector end, equivalently eliminate the pigtails when splicing.

The advantage is no need additional protection after splice, such as splice tray, splice closure, distribution box.

In contract to the design of mechanical splice connector, it save V-groove mechanical connector maintenance and operation cost.

Description

1 - Model No: FLK-SOC-SA01

2 - Applicable for cable : 0.9mm, 2.0mm, 3.0mm indoor cable or Drop cable

3 - Fiber type: SM G652D, 657A & 657B

4 - Polishing Type: UPC or APC

5 - Insert loss: ≤ 0.3dB

6 - Return loss: UPC≥50dB, APC≥60dB

7 - Tensile strength: >60 N

8 - Opertating temperature: -40～+75℃

Feature

Field-termination connector with no epoxy or polishing required

No matching gel enables low reflection and high reliability

Splicing point is inside of the connector.

No additional splicing work required

Easily assembled with one-touch, push-pull system

Used for φ3.0mm, φ2.0mm cable and 3x2mm drop cable etc

The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken

The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability

Compliance to GR-326-CORE Applications

Optical Distribution Frame

Optical Network Equipments

FTTH, CATV
