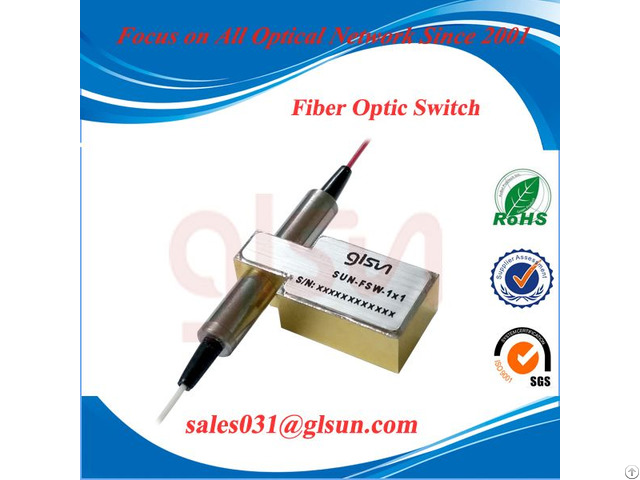

GLSUN 1x1 Mechanical Optical Switch

SUN-FSW-1×1 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2m m.

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

GLSUN 1x1 Mechanical Optical Switch - Features

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching GLSUN 1x1 Mechanical Optical Switch - Applications

R&D in Laboratory

System Monitoring

OADM

MAN(Metropolitan Area Network)

Network Security and Monitoring GLSUN 1×1 Optical Switch - Specifications

Parameters Unit SUN-FSW-1×1

Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650

Test Wavelength nm 850 / 1300 1310 / 1550

Insertion Loss 1, 2 dB Typ: 0.5 Max: 0.8 Typ: 0.4 Max: 0.6

Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50

Crosstalk 1 dB MM ≥ 65 SM ≥ 70

PDL dB ≤0.05

WDL dB ≤0.25

Repeatability dB ≤±0.02

Operating Voltage V 3.0 or 5.0

Durability Cycles ≥ 10 Million

Switching Time ms ≤8

Optical Power mW ≤500

Operating Temperature ℃ -20 ~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Weight g 14

Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding Connectors.
