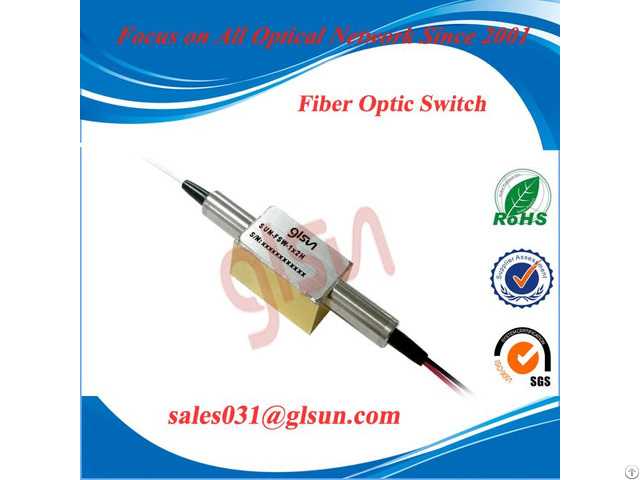

Glsun 1x2h Mechanical Optical Switch - China

GLSUN 1×2H Mechanical Optical Switch Fiber Switch Features

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching GLSUN 1×2H Mechanical Optical Switch Fiber Switch Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN (Metropolitan Area Network)

·Network Security and Monitoring GLSUN 1×2H Mechanical Optical Switch Fiber Switch Specifications

Parameters Unit SUN-FSW-1×2H

Wavelength Range nm 1260 ~ 1650

Test Wavelength nm 1310 / 1550

Insertion Loss 1, 2 dB Typ: 0.8 Max: 1.0

Return Loss 1, 2 dB SM ≥ 50

Crosstalk 1 dB SM ≥ 55

PDL dB ≤0.05

WDL dB ≤0.25

Repeatability dB ≤±0.02

Operating Voltage V 3.0 or 5.0

Durability Cycles ≥ 10 Million

Switching Time ms ≤8

Optical Power mW ≤500

Operating Temperature ℃ -20 ~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Weight g 14

Dimension mm (L )22.5×(W)11.8×(H)10.2 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding Connectors.
