Glsun 1x4 Magneto Optical Switch - China

price: 500.00 Dollar US$

Glsun 1x4 Magneto Optical Switch

Products Photos Catalog Glsun 1x4 Magneto Photos Catalog

Product Description

The high-speed 1x4 magneto-optical switch can be used in high-speed all-optical communication network.

The optical route design covers optical route design of polarization in optical switch, the performance analysis and material selection of magneto-optic crystal and magnetic path design in Faraday rotator.

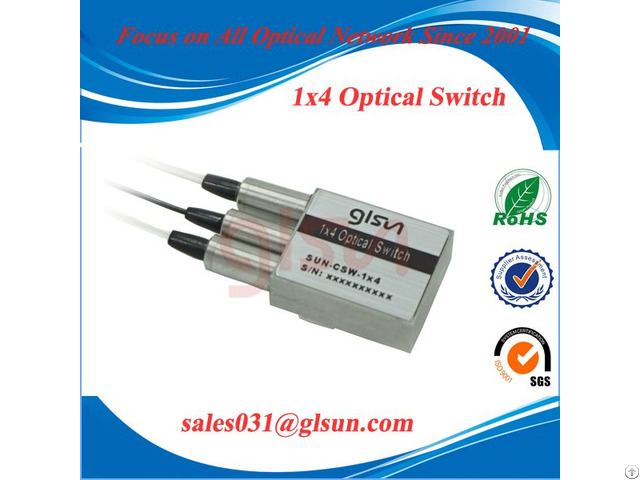

1x4 Magneto-Optical Switch

Features

High switching speed

Better durability

High reliability

Low voltage drive

Fail-safe latching Applications

Optical channel blocking

Configurable Add/Drop

System monitoring, Test&measurement

Fiber-optics sensing system GLSUN 1x4 Magneto-Optical Switch Specifications

Parameters Unit 1x4

Wavelength Range nm 1520~1580

Test Wavelength nm 1550

Insertion Loss dB 1.2

Return Loss dB ≥ 50

Crosstalk dB Bidirectional ≥ 20

Unidirectional ≥ 40

PDL dB ≤ 0.2

Repeatability dB ≤ ±0.01

Operating Voltage V 2.5±10%

Drive Current mA 110~190

Durability Cycles ≥ 30 Bllions

Switching Time us ≤ 100(typ: 50)

Pulse Duration us 200~500

Switching Type n/a Latching

Optical Power mW ≤ 500

Operating Temperature ℃ -5~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Dimension mm (L )26x(W)20x(H)6±0.2


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: April 25, 2018

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
