Glsun 1x8 Fiber Optic Switch - China

price: 500.00 Dollar US$

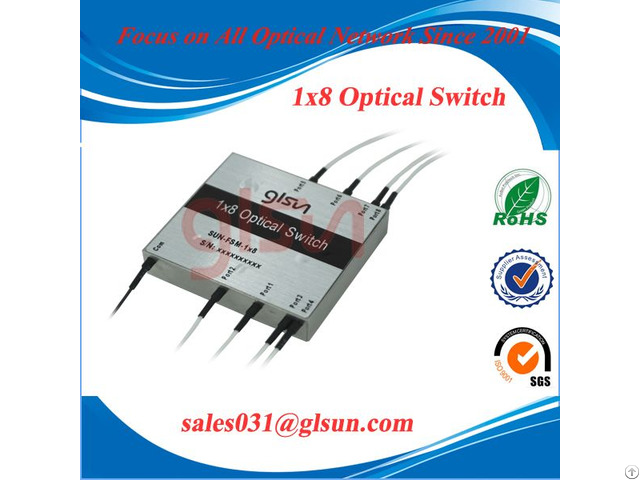

Glsun 1x8 Fiber Optic Switch

Products Photos Catalog Glsun 1x8 Fiber Optic Photos Catalog

Low Insertion Loss 1x8 fiber optic switch for OADM and system monitoring Features

Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latchin Application

R&D in Laboratory

System Monitoring

OADM

MAN (Metropolitan Area Network) Specification

8-port fiber optic switch - Specifications

Parameters

Unit

SUN-FSW-1x8

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1, 2

dB

≤1.0

Return Loss 1, 2

dB

≥ 50

Crosstalk 1

dB

≥ 55

PDL

dB

≤0.10

WDL

dB

≤0.25

Repeatability

dB

≤±0.05

Operating Voltage

V

3 or 5

Durability

Cycles

≥ 10 Million

Voltage Pulse Width(Latching)

ms

Typ: 20

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

0 ~ +70

Storage Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L)45×(W)41×(H)9.5 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: April 24, 2018

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
