Glsun 2x2 Magneto Optical Switch - China

Product Description

The high-speed 2x2 magneto-optical switch can be used in high-speed all-optical communication network.

The optical route design covers optical route design of polarization in optical switch, the performance analysis and material selection of magneto-optic crystal and magnetic path design in Faraday rotator.

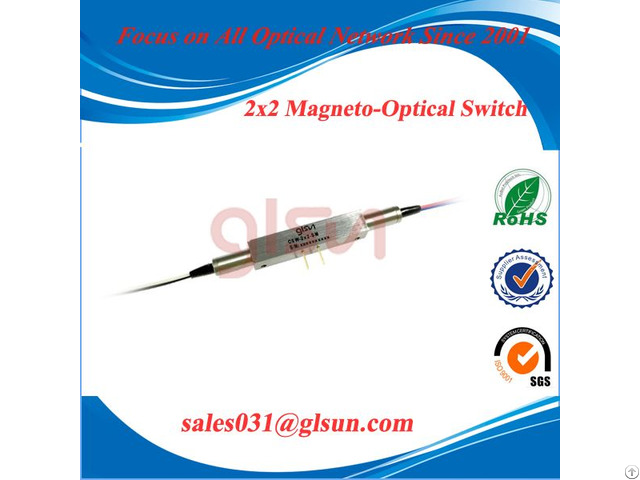

2x2 Magneto-Optical Switch

Features

High switching speed

Better durability

High reliability

Low voltage drive

Fail-safe latching Applications

Optical channel blocking

Configurable Add/Drop

System monitoring, Test&measurement

Fiber-optics sensing system Specifications

Parameters Unit 2x2

Wavelength Range nm 1520~1580

Test Wavelength nm 1550

Insertion Loss dB ≤ 1.2

Return Loss dB ≥ 50

Crosstalk dB ≥ 30

PDL dB ≤ 0.2

Repeatability dB ≤ ±0.01

Operating Voltage V 2.5±10%

Drive Current mA 110~190

Durability Cycles ≥ 30 Bllions

Switching Time us ≤100(typ：50)

Pulse Duration us 200~500

Switching Type n/a Latching

Optical Power mW ≤ 500

Operating Temperature ℃ -5~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Dimension mm (L )38x(W)7.3x(H)6±0.2
