Glsun 8 1 Fiber Optical Switch - China

price: 500.00 Dollar US$

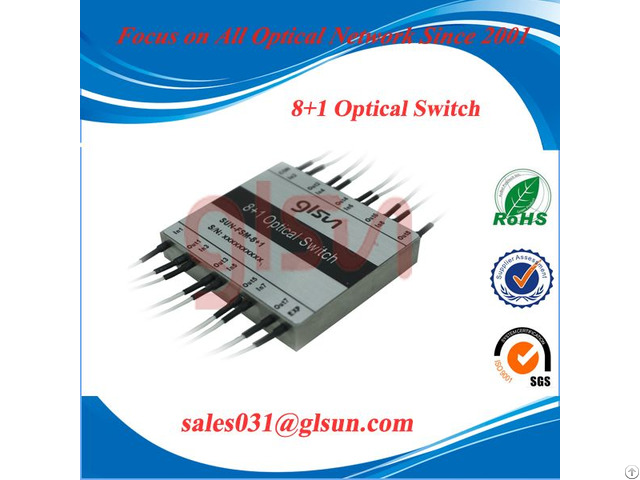

Glsun 8 1 Fiber Optical Switch

Products Photos Catalog Glsun Fiber Optical Photos Catalog

Features

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN (Metropolitan Area Network) GLSUN 8+1 Fiber Optical Switch Specifications

Parameters Unit SUN-FSW-8+1

Wavelength Range nm 1260 ~ 1650

Test Wavelength nm 1310 / 1550

Insertion Loss 1, 2 dB ≤ 1.0

Return Loss 1, 2 dB ≥ 50

Crosstalk 1 dB ≥ 55

PDL dB ≤0.1

WDL dB ≤ 0.30

Repeatability dB ≤ ±0.02

Operating Voltage V 3.0 or 5.0

Durability Cycles ≥ 10 Million

Switching Time ms ≤ 8

Optical Power mW ≤ 500

Operating Temperature ℃ -20 ~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Dimension mm (L)51.8×(W)46.8×(H)9.7 ±0.2

Note: 1 Test at room temperature.

2 Excluding connectors.


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: April 24, 2018

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
