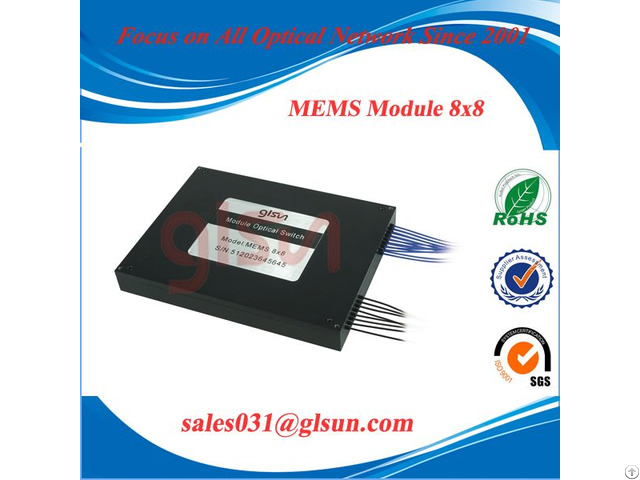

Glsun 8x8 Mems Fiber Optical Switch - China

8x8 MEMS Fiber Optical Switch- Features

·Base on MEMS technology

·Small package

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Non-latching

8x8 MEMS Fiber Optical Switch- Applications

·DWDM networks

·Channel Monitor

·R&D in Laboratory

·Configurable OADM Specifications

Parameters Unit SUN-FSW-MEMS-8x8

Operation Wavelength nm 1550±40

Test Wavelength nm 1550

Insertion Loss 1, 2 dB 1.5TYP 2.0(MAX)

Return Loss dB ≥45

Crosstalk dB ≥55

Repeatability dB ≤±0.05

Power Supply V 5

Durability Cycles ≥109

Switch Time ms ≤20

Switch Type Non-Lacth Type

Transmission Power mW ≤500

Operating Temperature ℃ -5~+70

Storage Temperature ℃ -40~+85

Dimension mm 127(L) x 95(W) x15 (H) ±0.2

Note 1 Within operating temperature and SOP.

2 Excluding connectors.

Company Contact:

• Posted By: GLsun Science And Tech Co., Ltd.

• Phone: 86-773-3116006

• Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

• Email:

• Website: https://www.glsun.com/

• Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

  GLSUN holds many technical patents on optics.

  Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

  Since its establishment, GLsun has striven to be an innovative and advanced technical company.

  The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

  GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

  The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
