Glsun Cascade Optical Switch - China

price: 500.00 Dollar US$

Product Description

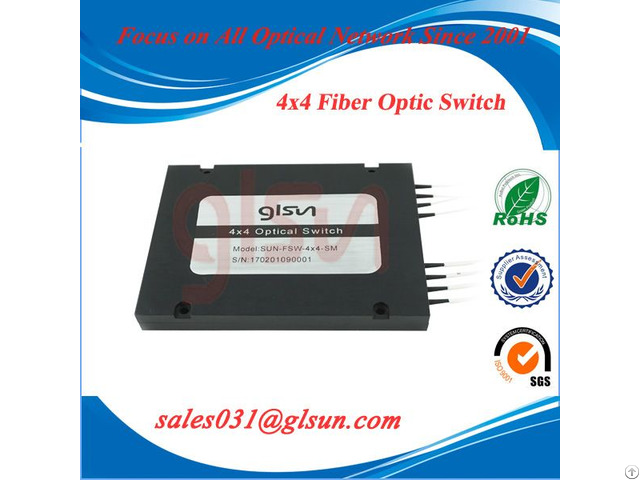

GLSUN 4×4 Multi-Channel Fiber Optical Switch - Introduction

SUN-FSW-4×4 Cascade Optical Switch is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

Features

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path Applications

·R&D in Laboratory

·System Monitoring

·OADM

·OXC 4×4 Cascade Optical Switch - Specifications

Parameters

Unit

SUN-FSW-4×4

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss

dB

Typ: 2.3 Max: 2.6

Return Loss

dB

MM ≥ 30 SM ≥ 50

Crosstalk

dB

MM ≥ 35 SM ≥ 55

PDL

dB

≤ 0.15

WDL

dB

≤ 0.35

Repeatability

dB

≤ ±0.05

Power Supply

V

5.0 ± 5%

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature



-5 ~ +70

Storage Temperature



-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L)110×(W)95×(H)14 ±0.2


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: April 25, 2018

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
