Glsun D2x2b Fiber Optical Bypass Switch - China

Product Description

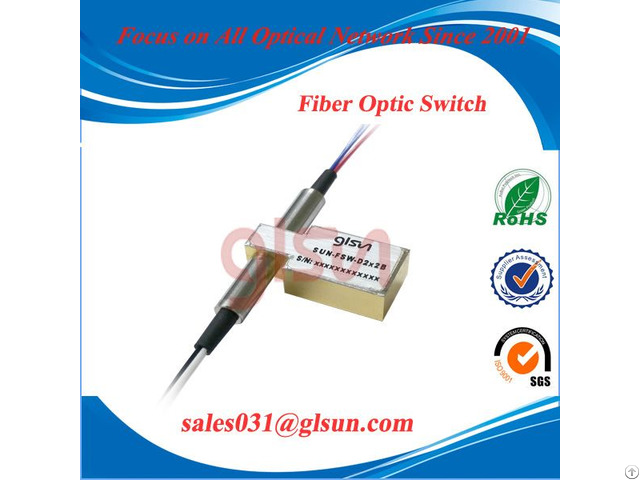

GLSUN D2x2B Fiber Optical Switch - Introduction

SUN-FSW-D2x2B Fiber Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0x(W)12.6x(H)8.2mm.

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

Features

Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching Applications

R&D in Laboratory

System Monitoring

OADM

MAN (Metropolitan Area Network) Specifications

Parameters Unit SUN-FSW

Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650

Test Wavelength nm 850 / 1300 1310 / 1550

Insertion Loss 1, 2 dB 1x1 ≤ 0.5

1x2 / 2x2B ≤ 0.8

D1x2 / D2x2B ≤ 1.0

Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50

Crosstalk 1, 2 dB MM ≥ 35 SM ≥ 55

PDL dB -- ≤ 0.05

WDL dB ≤ 0.30

Repeatability dB ≤ ±0.02

Operating Voltage V 3.0 or 5.0

Durability Cycles ≥ 10 Million

Switching Time ms ≤ 8

Optical Power mW ≤ 500

Operating Temperature ℃ -20 ~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1 Test at room temperature.

2 Excluding connectors.
