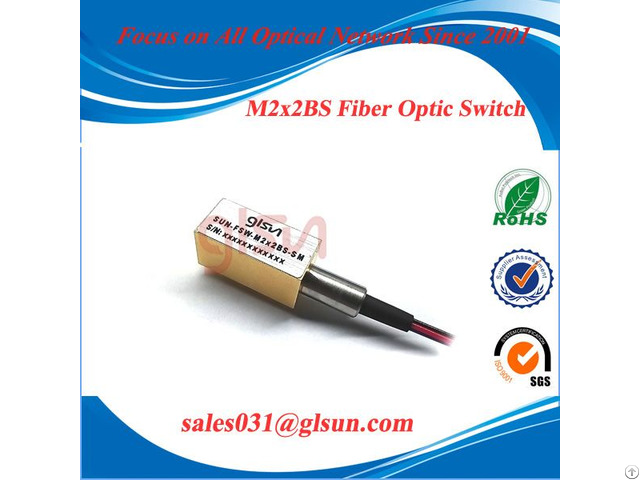

GLSUN Mini Single-end Fiber Optical Switch

Features ·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN (Metropolitan Area Network) Specification

GLSUN Mini Single-end Fiber Optical Switch - Specification

Parameters

Unit

M1×1S or M1×2S or M2×2BS

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1, 2

dB

M1×1S

Typ: 0.4 Max: 0.6

M1×2S or M2×2BS

Typ: 0.6 Max: 0.8

Return Loss 1, 2

dB

SM ≥ 50

Crosstalk 1

dB

SM ≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3V or 5V

Durability

Cycles

≥ 10 Million

Voltage Pulse Width

(Latching)

ms

≥ 20

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

-20~ +70

Storage Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

13

Dimension

mm

(L )20×(W)9.5×(H)8.5 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
