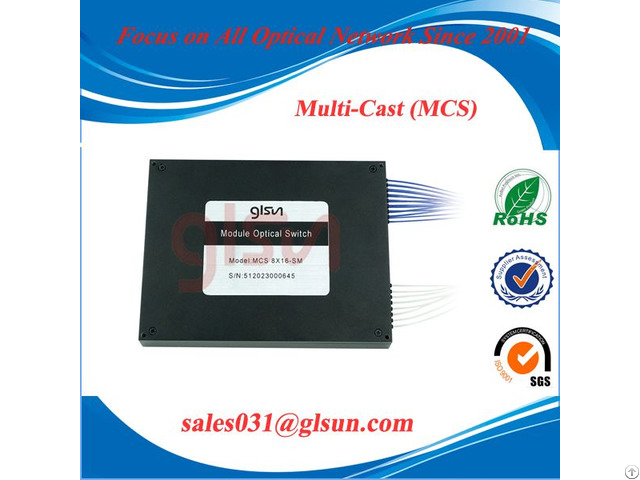

Glsun Multicast Switch Mcs 8x16 - China

Introduction

Multicast Switch (MCS) series are designed for next generation of CDC-ROADM system based on PLC splitter and MEMS optical switch technology.

The product is an integrated module containing 8x16 type MCS and electronic control unit inside.

The module could implement the function that any one of the optical input could be routed to any one of the output ports.

It could be used at key locations in the CDC-ROADM optical network.

Features

· ADD & DROP in one module

· Hit-less switching

· Low insertion losee

· Low power dissipation Applications

· DWDM Networks

· ROADM Systems Specifications

Parameters Units SUN-MCS-8X16 Min.

Typ.

Max.

Downlink Port Number M 8

Uplink Port Number N 16

Operation Wavelength Range nm 1527 1568

Test Wavelength nm 1550 Insertion Loss 1, 2 dB 16

Insertion Loss Uniformity dB 1.5

Polarization Dependent Loss dB 0.5

Wavelength Dependent Loss dB 0.5

Polarization Mode Dispersion ps 0.5

Block State Insertion Loss dB 40 Return Loss dB 45 Port Isolation dB 40 Port Switch Time ms 25

Repeatability dB ±0.05 Maximum Optical Input Power dBm 23

Durability Cycles 109 Power Consumption W 10

Operating Temperature ℃ -5~+60

Storage Temperature ℃ -40~+85

Dimension mm 220(L) x120(W) x15(H) ±0.2

Note 1 Within operating temperature and SOP.

2 Excluding connectors.
