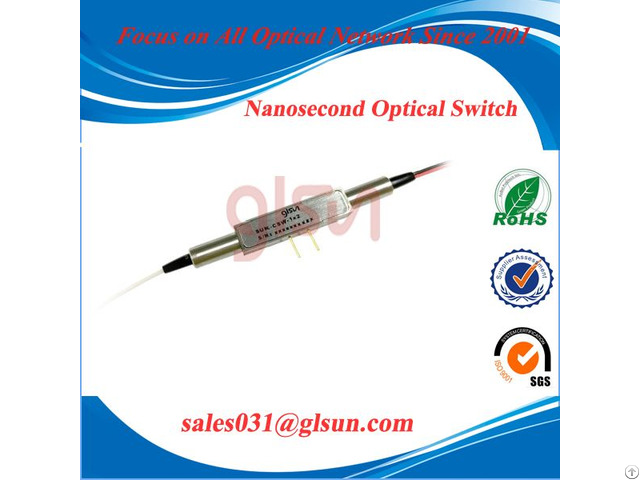

Glsun Nanosecond Optical Switch - China
price: check with company for price
Features
High switching speed
Better durability
High reliability
Fail-safe latching Applications
Optical channel blocking
Configurable Add/Drop
System monitoring, Test&measurement
Fiber-optics sensing system Specifications
Parameters Unit 1x2
Wavelength Range nm 1260~1650
Test Wavelength nm 1310 / 1550
Insertion Loss dB 1.0
Return Loss dB ≥ 50
Crosstalk dB ≥ 20
PDL dB ≤ 0.35
Repeatability dB ≤ ±0.01
Switching Time ns ≤ 300
Repetition Rate KHz ≥ 5
Switching Type n/a Non-latching
Optical Power mW ≤ 300
Operating Temperature ℃ -5~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm (L )29x(W)7.3x(H)6±0.2
Company Contact:
- Posted By: GLsun Science And Tech Co., Ltd.
- Phone: 86-773-3116006
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China
- Email:
- Website: https://www.glsun.com/
Published date: April 25, 2018
- Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.
GLSUN holds many technical patents on optics.
Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
Since its establishment, GLsun has striven to be an innovative and advanced technical company.
The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.
GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.
The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
