Handheld Mini Otdr With Touch Screen X 30 - China

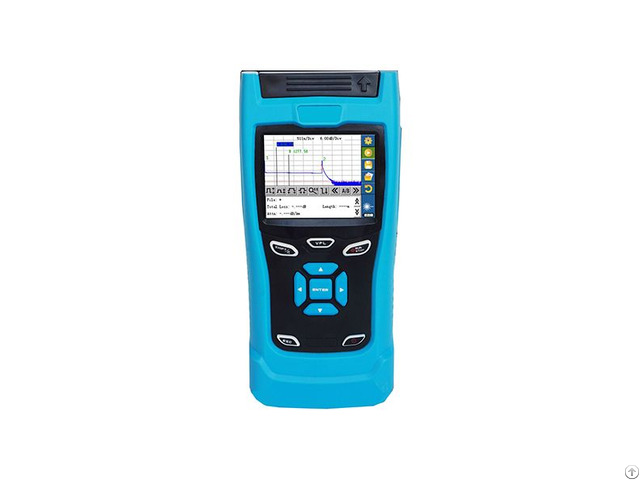

Mini OTDR X-30 Mini OTDR X-30 is a very reliable and good performance OTDR, it can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc accurately.

It is widely used in the maintenance, construction and monitoring of cable line.

It is also very easy to carry because of its small size and light weight.

Features Small, light and portable

One-click red-light switch-on function

Touch screen+keypad, easy to operate

Solid shell design, dust-proof and shock-proof

Supporting the sleep mode automatically to save the electric energy

Supporting data exchange between the SD card and USD flash drive

Supporting PC analysis software generating the test report rapidly and effectively

Large-capacity polymer lithium battery supporting operation of more than 10 hours

Widely used for installation, troubleshooting, reconstruction and maintenance of optical cables and fibers in various communication systems, such as metropolitan area network(MAN), wide area network(WAN) and CATV.

Specifications

Size 220(H)×106(W)×60(D)mm

Weight 0.88kg

Temperature Running temperature -10ºC to 50ºC

Memory temperature -40ºC to 70ºC

Relative humidity 0% to 95% (non condensation)

Power supply Lithium battery; continuous working hours ≥ 10 hours

Package OTDR, power adapter, power cord, carrying case, strap, USB manual

Application Widely used for installation, troubleshooting, reconstruction and maintenance of optical cables and fibers in various communication systems, such as metropolitan area network(MAN), wide area network(WAN) and CATV.

Model X-30-A X-30-B

Dynamic range (dB) 30/28 32/30 VFL Wavelength - 650nm

Output power(dBm) - ≥-3

Test distance(km) - 3

Optical communication test NO YES

Wavelength (nm) 1310/1550 Display 3.5'' TFT LCD touch screen

Light source type LD

Optical interface FC/UPC (FC/SC optional, UPC/APC optional)

Distance range(km) 0.3, 1, 3, 5, 10, 30, 60, 120

Pulse width (ns) 5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240, 20480, Auto

Measurement duration 15s, 30s, 1min, 2min, 3min

Event blind zone (m)3 1.8m

Attenuation blind zone (m)3 10m

Distance uncertainty (m) ±(1 m + 5×10-5× distance + sampling interval)

Data storage >60000 test traces

Communication interface USB Standard Accessories

1* OTDR

1* Carrying pocket

1* Power adapter

1* Power cord

1* Strap

1*User manual
