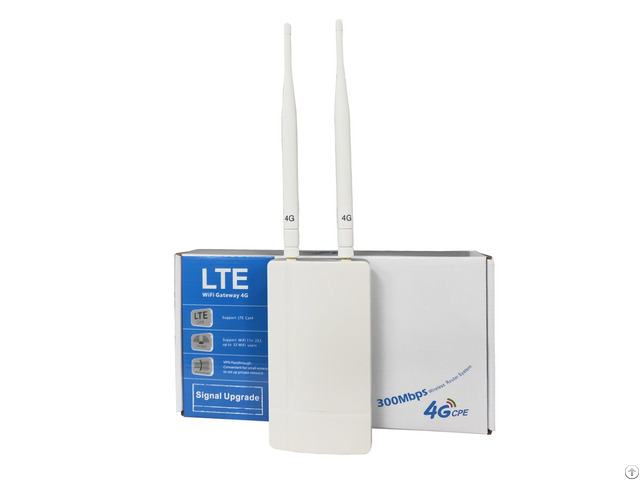

Indoor Cpe 4g Lte Wifi Router With 2 Ethernet Port - China

B260 specification parameter Motherboard chip Chip solution

Memory flash

Power amplifier chip

Antenna specification Omnidirectional antenna

rate 2.4Ghz: 300Mbps

LTE Cat4: 150Mbps(DL MAX)50Mbps(UL MAX)

Physicalinterface 2pcs10/100 LAN AJ45port support DC24V POE power supply;

1RESET reset button

1micro USB port (support DC5V 2.5A power supply

1micro SIM card slot

Indicator light power /WAN/LAN/WIFI/4G/3 signal intensity lights

power power supply: 2.4POEpower supply(100m)/USBport power supply;

Power Adapter: 24V0.5A Power Adapter

Power consumption <12W

Protection level IP66 level

Mounting method Pole-mounted installation, Wall mounting, Bracket mounting

Product Size Dimensions: 353*85*44mm


Using environment Working temperature: -10℃~55℃

storage temperature: -40℃~70℃

Working humidity, no condensation: 10%~90%RH noncondensing

Storage temperature, no condensation: 5%-95%RH noncondensing 4G Router B260 (support SMS function) 1 - The drop And Recharge Function: Network disconnection self-test repair function: When the device is off the public network, it will be detected every 2 minutes, and it will automatically reconnect to the registration dial (if the SIM card has no traffic, it will automatically detect the dial without manual restart after the SIM card recharged) ) 2 - Networking Mode Selection: 2: 1 automatic networking mode (in the automatic networking mode, if wifi and 4G exist at the same time, it will automatically set up the wifi network priority.

If it detects that the wifi network does not go to the Internet, it will automatically connect to the 4G network) 2: 2 3G/4G mode: fixed 3G/4G Internet access 2: 3 wifi mode: You can choose the wifi account and enter the password, it will automatically connect to the Internet on the wifi network.

3 - SSID can be set to be hidden or enabled, and the SSID name password can be modified.

4 - Relay function (INTERNET WIFI) function, this function is when external WIFI Internet access, and directly use external WIFI to access the Internet, then it will not use 4G network
